|Dimensions||200 × 160 × 90 mm|
Dark Grey, Clear Lid
IP65, IP66, IP67

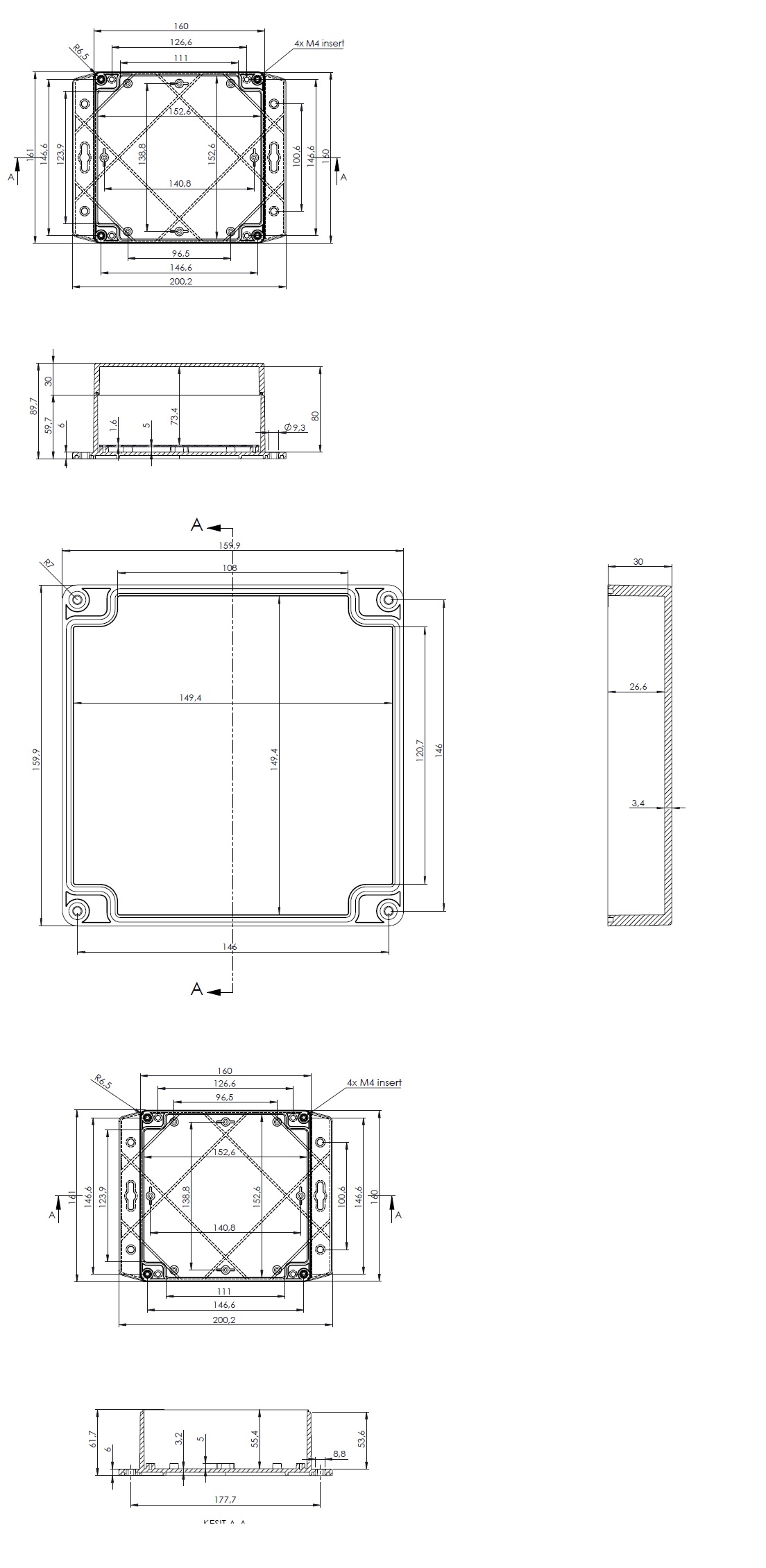

|Technical Drawing||Download Technical Drawing|
|Categories||IP67 Wall Mounted, IP67 Wall Mounted, New Products|

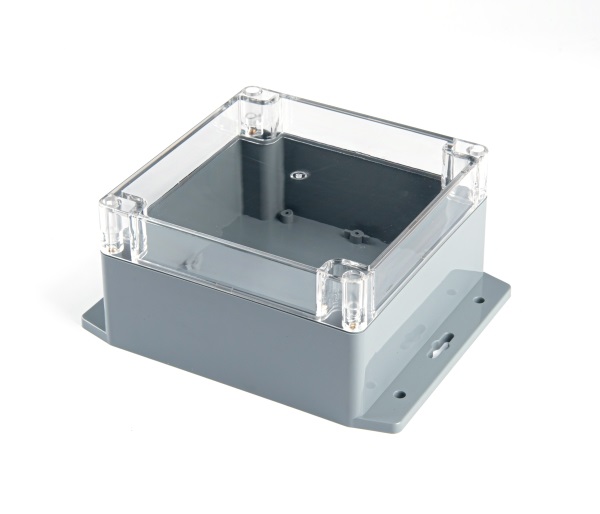

The EVA-246WMC is an IP67 wall mounted enclosure. Base material – ABS, lid material – clear Polycarbonate.
These heavy duty wall mounted enclosures are supplied complete with a continuous seal making them ideal for all outdoor applications.

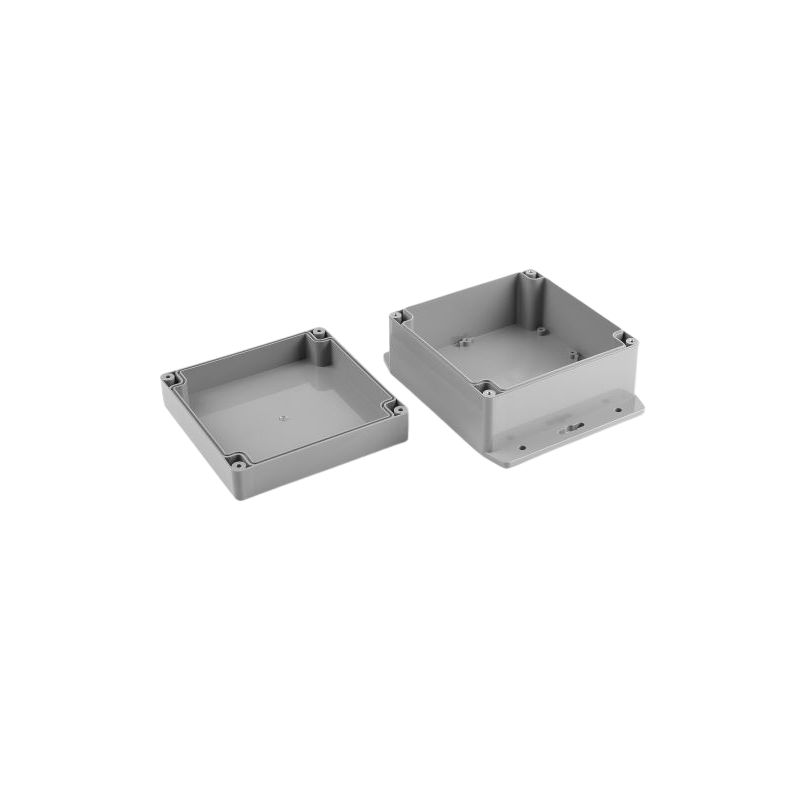

Internally the base benefits from PCB mounts in the base and the external flanges allow for the enclosure to be seamlessly wall mounted without compromising the IP rating.
All of our IP67 enclosures can be modified to your exact requirements so we can deliver your custom plastic enclosure ready to populate. The services include CNC machining, punching, painting, anodising, digital printing and screen printing. Our experienced sales team are on hand to offer advice and quotations, please contact us by phone on 01908 325100, email firstname.lastname@example.org or chat with us using our live chat service.
Please contact our sales team for ordering information.Request a Sample
