|Dimensions||100 × 58 × 39 mm|
IP65, IP66, IP67

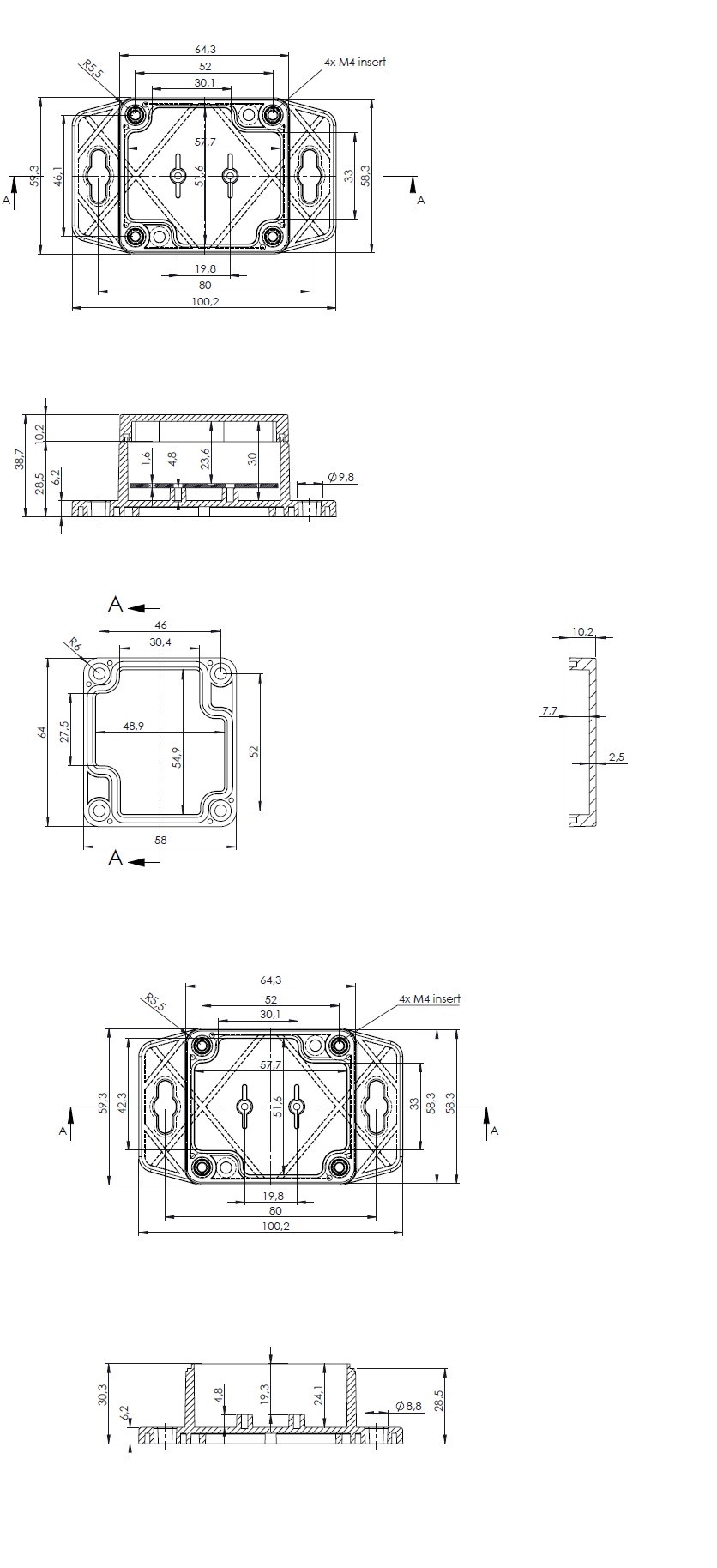

|Technical Drawing||Download Technical Drawing|
|Categories||IP67 Wall Mounted, IP67 Wall Mounted, New Products|

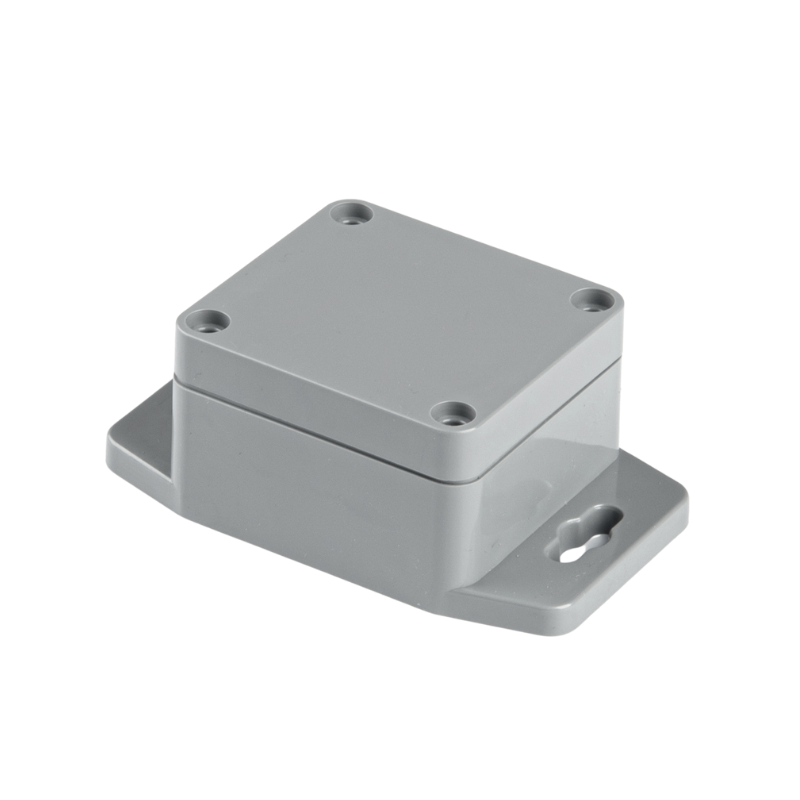

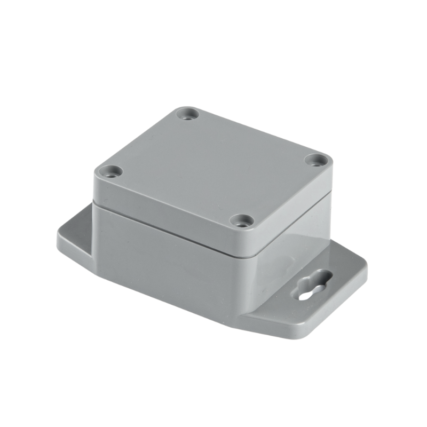

The EVA-204WM is an IP67 wall mounted enclosure moulded in ABS material.
These heavy duty wall mounted enclosures are supplied complete with a continuous seal making them ideal for all outdoor applications.

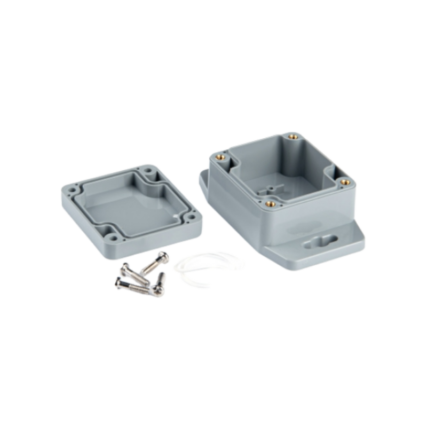

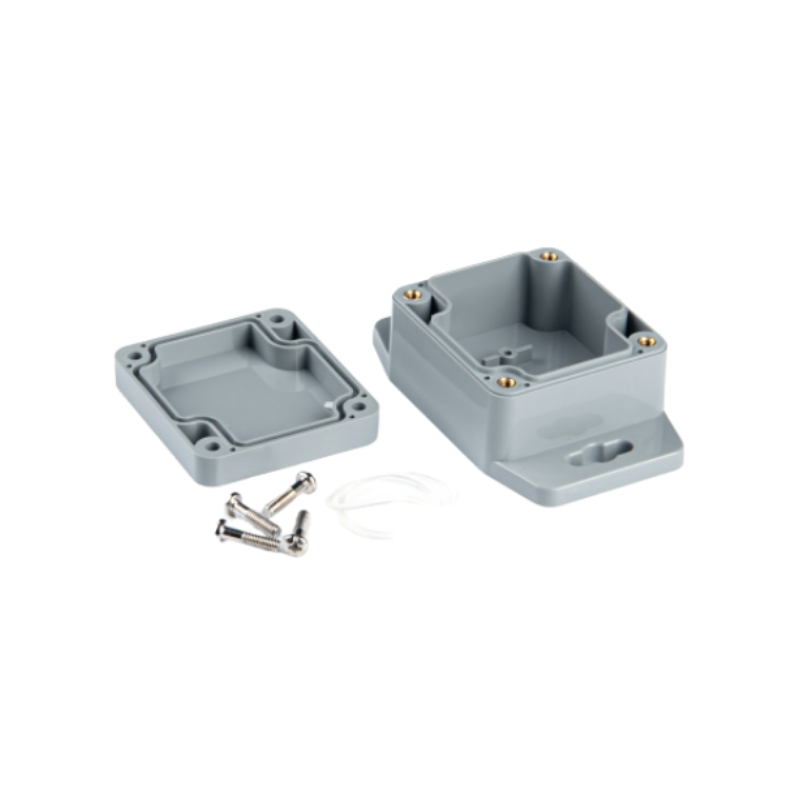

Internally the base benefits from PCB mounts in the base and the external flanges allow for the enclosure to be seamlessly wall mounted without compromising the IP rating.
All of our IP67 enclosures can be modified to your exact requirements so we can deliver your custom plastic enclosure ready to populate. The services include CNC machining, punching, painting, anodising, digital printing and screen printing. Our experienced sales team are on hand to offer advice and quotations, please contact us by phone on 01908 325100, email email@example.com or chat with us using our live chat service.
Please contact our sales team for ordering information.Request a Sample
We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.
