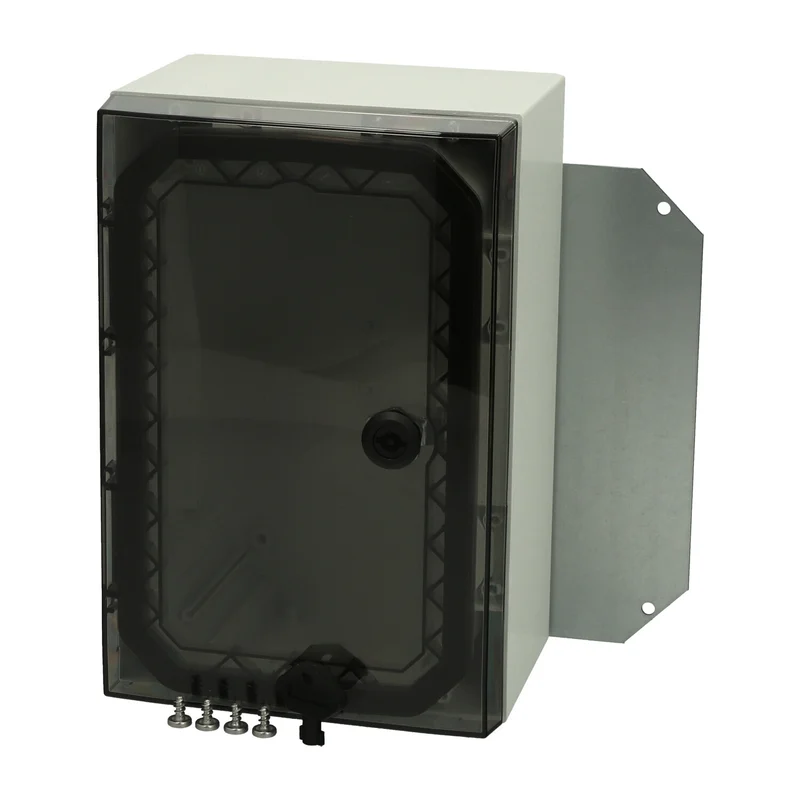

ARCA 302015T Cabinet Enclosure

The ARCA 302015T offers a superior, cost-effective alternative to traditional sheet steel cabinets. Made from high-grade thermoplastic polycarbonate, it combines the strength and security of steel with the lightweight, corrosion-free benefits of plastic.

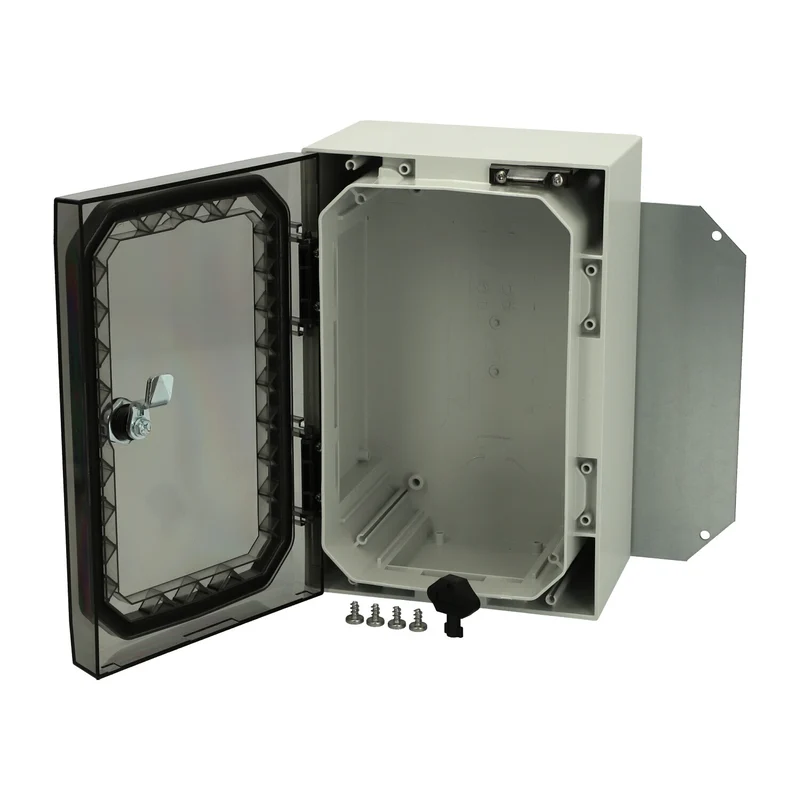

Designed for quick installation and easy use, this enclosure is engineered to protect your electronics in the most challenging indoor and outdoor environments.  It includes a 1-point changeable lock (with key), a protective polyurethane (PUR) gasket, and a mounting backplate.

Key Features

• High-Impact Protection: Achieves a superior IK10 impact rating and UL94-5VA flammability rating.

• Weatherproof & Dustproof: IP66-rated to keep dust, dirt, and high-pressure water jets out.

• Transparent Door: Single-moulded clear cover allows easy visual inspection without opening the cabinet.

• Corrosion-Free: Ideal for harsh, wet, or coastal environments where steel cabinets rust.

Customisation & Accessories

We can customise all ARCA cabinet enclosures to your exact specifications, including custom machining, cutouts, and silk-screen printing.

A wide range of compatible accessories is also available, including:

• Upgraded locking systems

• Wall and pole mounting kits

• DIN rail frame sets

• Inner door kits

• Vented cable glands and plugs

Need a custom modification or a volume discount?  Email us at sales@evatron.com with your requirements, and our team will provide a tailored quote.
