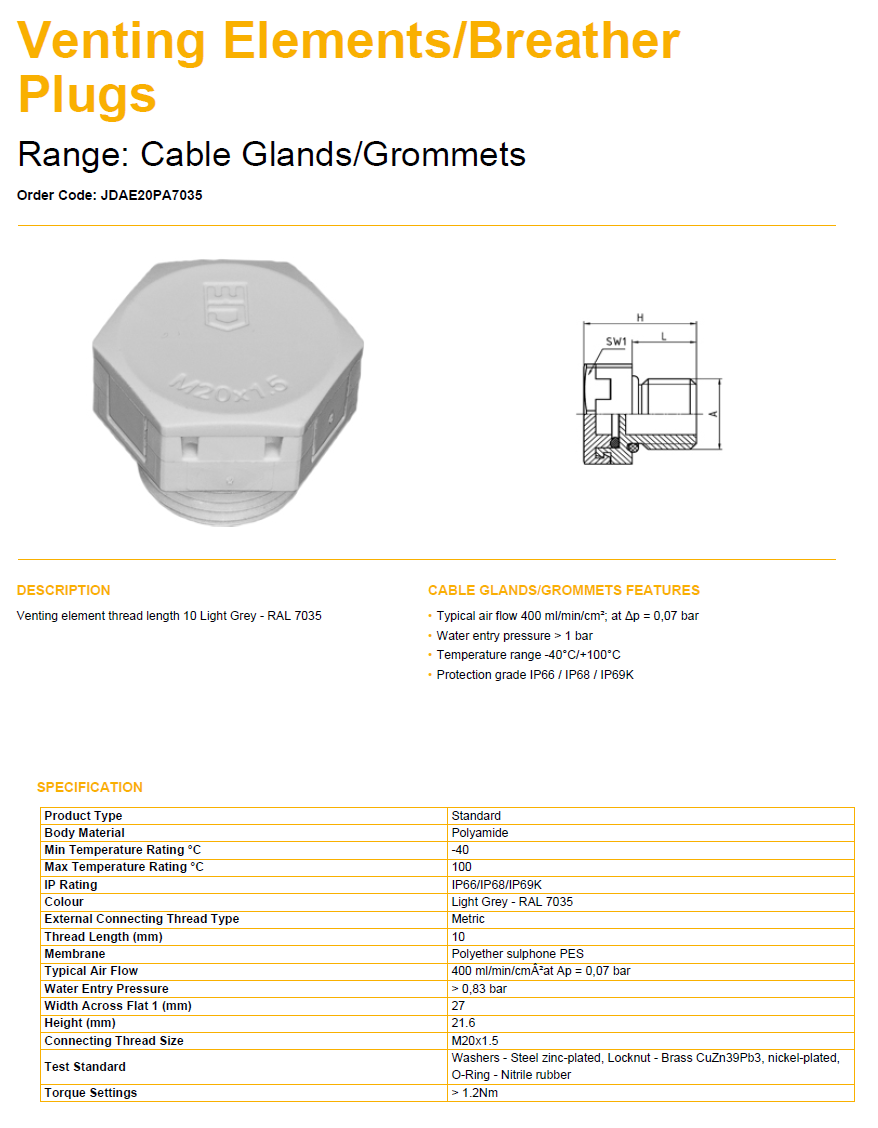

|Technical Drawing||Download Technical Drawing|
The JD series of venting plugs are designed to provide protection for hermetically sealed electronic enclosures. The design allows continuous ventilation and adaption of the inner enclosure pressure to prevent condensation build up whilst maintaining the IP rating of your enclosure. The venting plug can be installed by machining a threaded hole into your enclosure, please contact us for machining pricing.
- Typical Air flow > 400 ml/min/cm² at ∆p = 0,07 bar
- Water entry pressure > 0,83 bar (dynamic WEP, 30 seconds)
- Temperature range -40 °C to +100 °C
- IP Rating IP66/IP67/IP69K
- Connecting thread metric, as per EN 60423
- Polyamide material fulfills UL 94 V-0
- M20 thread – Image for illustrative purposes only.
