ARCA 302015 – Cabinet Enclosure


300 × 200 × 150 mm

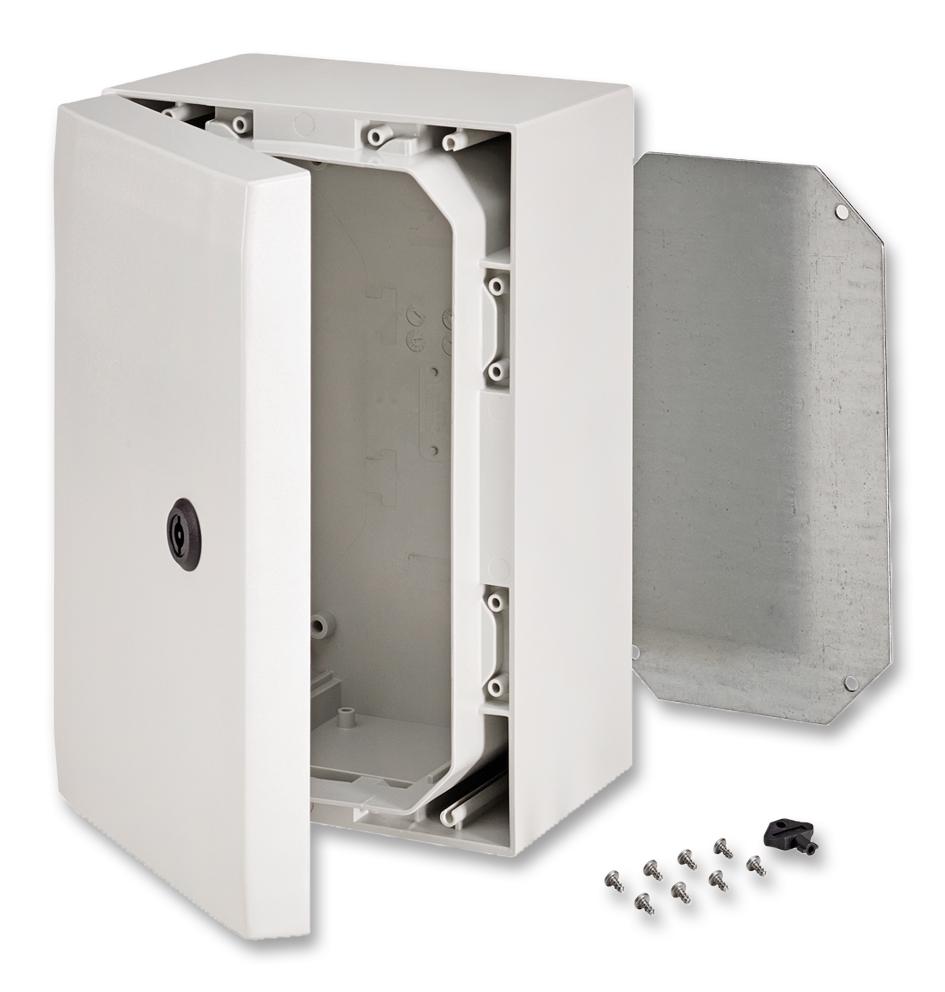

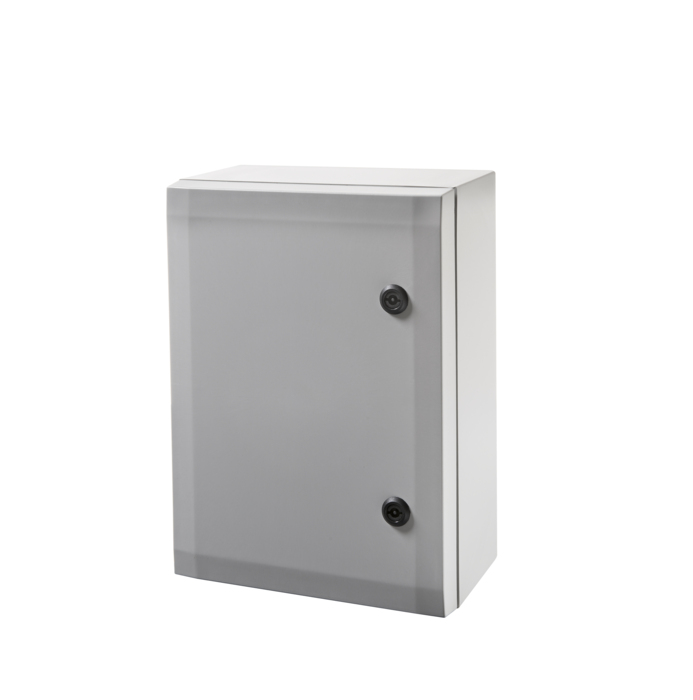

Grey (RAL 7035) polycarbonate IP66 cabinet enclosure with PUR gasket and back plate. One point changeable locking system with key which is included in the case. ARCA cabinets are designed for harsh and demanding environments combining robust and rugged qualities with ease of use and installation. The polycarbonate material achieves IK10 impact rating and UL94-5VA flammability rating.

Wide range of accessories available including upgraded locking systems, wall mounting kits, pole mounting kits, din rail frame sets and inner door kits.

All of the ARCA Cabinet Enclosures can be modified to your exact requirements including machining and silk screening. Please contact for more information.

For volume discounts please email with your requirements.

Quantity discounts
1-49 50-100 101+
£71.09 £67.54 £63.98
Request a Sample

Price Match

Ask us to beat your competitor price for this product!

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing or by using our live chat service.

Dimensions 300 × 200 × 150 mm


IP Rating

IP65, IP66

Part Number ARCA 302015
Technical Drawing Download Technical Drawing
Categories , , , , ,

Accessories for this product
