460 × 380 × 180 mm

The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.

The GR17292 clear lid enclosure is ideal for electrical installations and can be used as a junction box.

Internally there are mounting points for securing PCB and mounting plates as well as channels for mounting din rails.

The enclosure is sealed by stainless steel fixings which are included and the enclosure can be wall mounted using knockout points on the base, external wall mounting kits are available to purchase from our accessories.

The enclosure is supplied with a clip in hinge as shown in the images.

Grey lid option available – GR17250

All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email or ask us on live chat.

  • Grey ABS material (RAL7035)
  • IP65 rated enclosure
  • Temperature resistance -5°C to +60°C
  • Glow wire test: 650°C IEC 60695-2-11
  • Clear hinged lid
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing or by using our live chat service.

Dimensions 460 × 380 × 180 mm

Grey with Transparent lid

Part Number GR17292

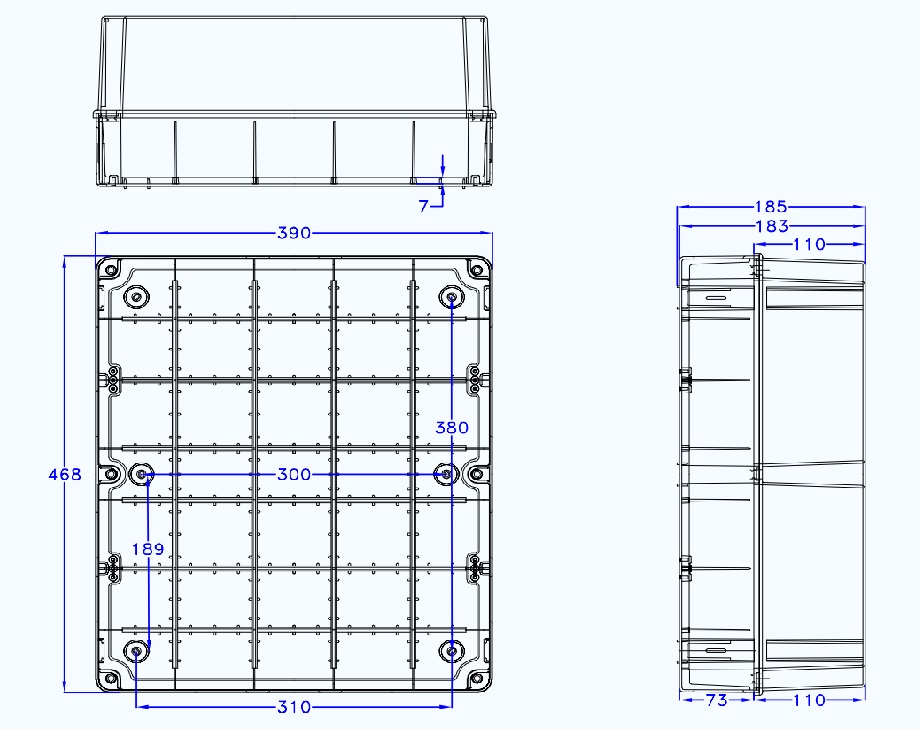

Technical Drawing Download Technical Drawing
