150 × 140 × 75 mm

The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.

The GR17210 clear lid enclosure is ideal for electrical installations and can be used as a junction box.

Internally there are mounting points for securing PCB or din rails and knockout points in the base for easy mounting.

The enclosure is sealed by stainless steel fixings which are included, external wall mounting kits are available to purchase from our accessories.

Clear lid option available – GR17010

All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email or ask us on live chat.

  • Grey ABS material (RAL7035)
  • IP65 rated enclosure
  • Temperature resistance -5°C to +60°C
  • Glow wire test: 650°C IEC 60695-2-1
  • Clear polycarbonate lid
Quantity discounts
1-49 50-100 101+
£8.94 £8.49 £8.05
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing or by using our live chat service.

Dimensions 150 × 140 × 75 mm

Grey with Transparent lid

IP Rating


Part Number GR17210

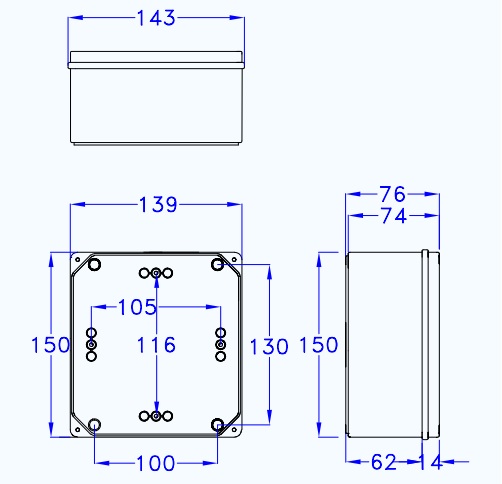

Technical Drawing Download Technical Drawing
Categories , , , , ,

Accessories for this product
