|Dimensions||380 × 300 × 180 mm|
Grey with Transparent lid

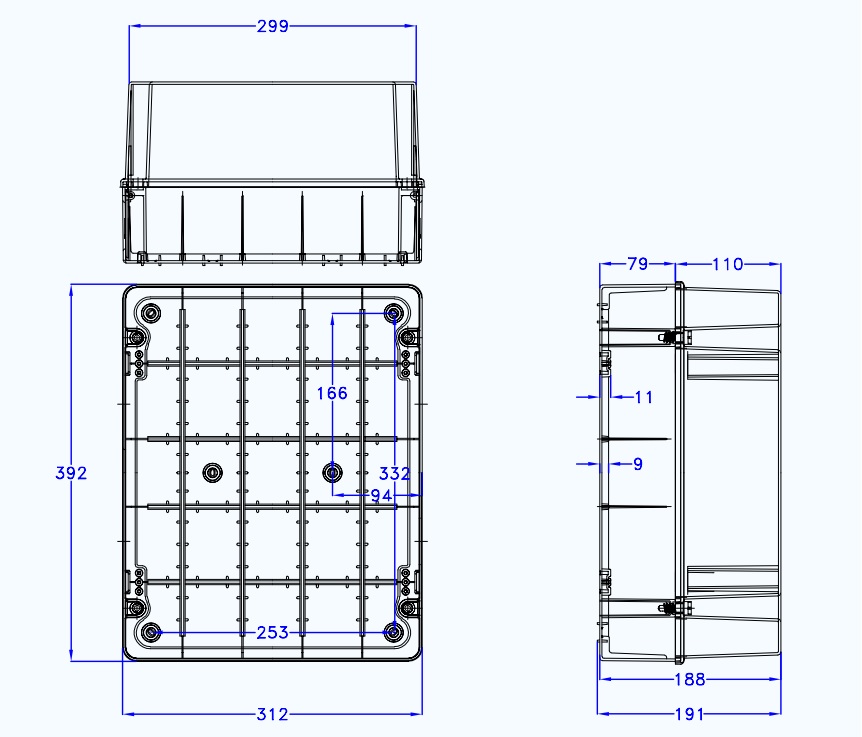

|Technical Drawing||Download Technical Drawing|
|Categories||GR Series - IP65 Enclosures, GR Series - IP65 Enclosures, IP Rated Enclosures, IP65 Enclosures, Plastic Enclosures|
The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.
The GR17288 clear lid enclosure is ideal for electrical installations and can be used as a junction box.
Internally there are mounting points for securing PCB and mounting plates as well as channels for mounting din rails.
The enclosure is sealed by stainless steel fixings which are included and the enclosure can be wall mounted using knockout points on the base, external wall mounting kits are available to purchase from our accessories.
The enclosure is supplied with a clip in hinge as shown in the images.
Grey lid option available – GR17246
All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email email@example.com or ask us on live chat.
- Grey ABS material (RAL7035)
- IP65 rated enclosure
- Temperature resistance -5°C to +60°C
- Glow wire test: 650°C IEC 60695-2-11
- Clear hinged lid
