| Dimensions | 150 × 110 × 75 mm |
|---|---|
| Colour | Grey with Transparent Door |
| IP Rating | IP65 |
| Part Number | GR15070 |

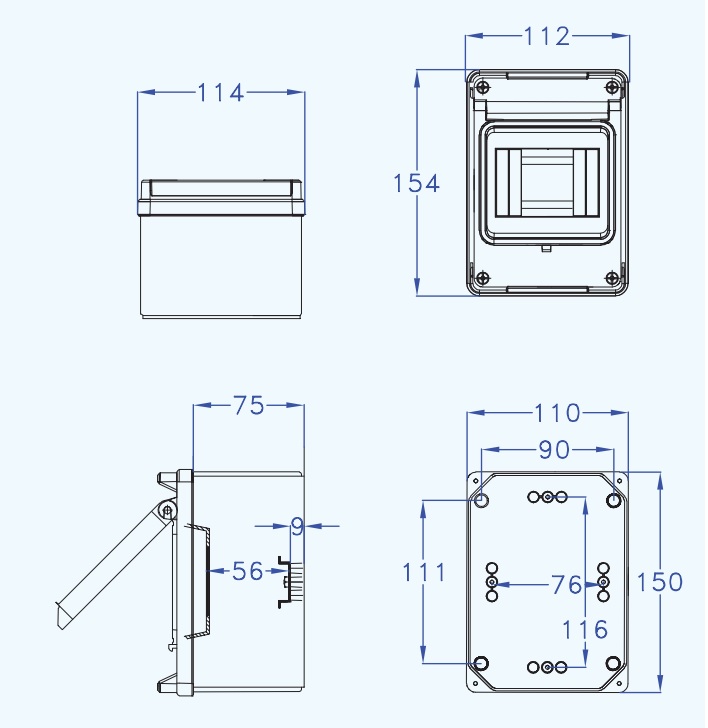

| Technical Drawing | Download Technical Drawing |
| Categories | Consumer Unit Enclosure, Din Rail Enclosures, IP65 Enclosures, Plastic Enclosures |
GR15070 Consumer Unit Enclosure
£12.83
150 × 110 × 75 mm
Grey ABS IP65 consumer unit enclosure with one hinged inspection window. 4-5 modules.
Also available in white. Please contact sales on 01908 325100 for more information.
Approval certificate IMQ N°EL071
Reference norms CEI 23-48 I Ed. 1998 CEI 23-49:1996+V1:2001+V2:2003
Products conform to the essential requisites of the directive IEC 60670-24:2005 I Ed. E IEC 60670-1:2002
Temperature during Installation: -5°C to + 60°
Glow wire test:650°C EN 60335-1:94+IEC695-2-1
Ageing test according to CEI 23-48: 7 days at 70°
Pressure test with the sphere according to CEI 23-48: 70°C
Use tension 400V-50HZ
Insulation resistance > 5MΩ
Shock resistance: IK07
Quantity discounts
| 1-49 | 50-100 | 101+ |
| £12.83 | £12.19 | £11.55 |
