GR15078 Consumer Unit Enclosure

569 × 277 × 110 mm

Grey ABS IP65 consumer unit enclosure with one hinged inspection window. 12-24-36 modules.

Please contact sales on 01908 325100 for ordering information.

Approval certificate IMQ N°EL071
Reference norms CEI 23-48 I Ed. 1998 CEI 23-49:1996+V1:2001+V2:2003
Products conform to the essential requisites of the directive IEC 60670-24:2005 I Ed. E IEC 60670-1:2002
Temperature during Installation: -5°C to + 60°
Glow wire test:650°C EN 60335-1:94+IEC695-2-1
Ageing test according to CEI 23-48: 7 days at 70°
Pressure test with the sphere according to CEI 23-48: 70°C
Use tension 400V-50HZ
Insulation resistance > 5MΩ
Shock resistance: IK07

Please contact our sales team for ordering information.

Request a Sample

Please contact our sales team for ordering information.

Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

Additional information

Dimensions 569 × 277 × 110 mm
Colour

Grey with Transparent Door

IP Rating

IP65

Part Number GR15078

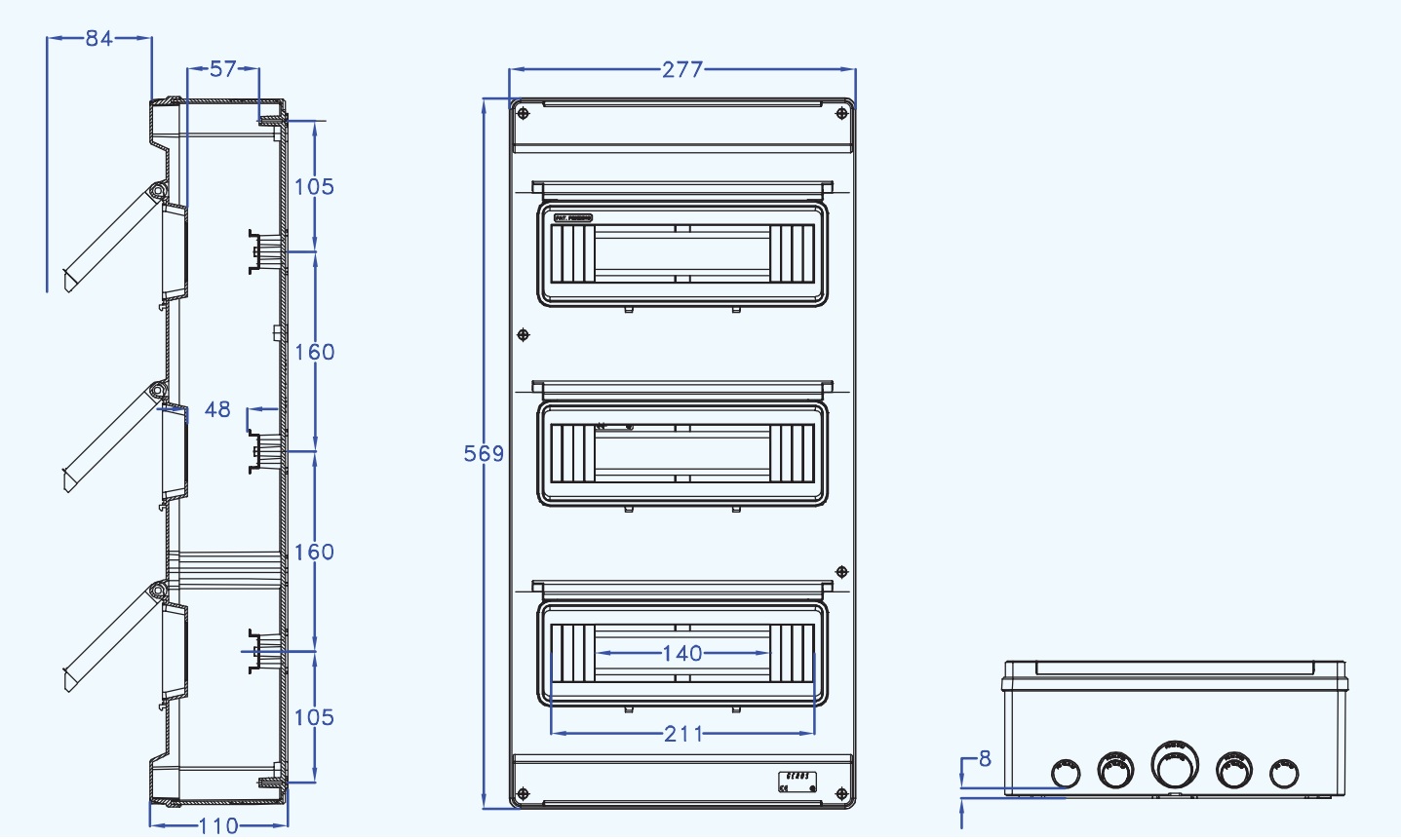

Technical Drawing Download Technical Drawing
