|Dimensions||170 × 170 × 75 mm|
Grey with Transparent Door

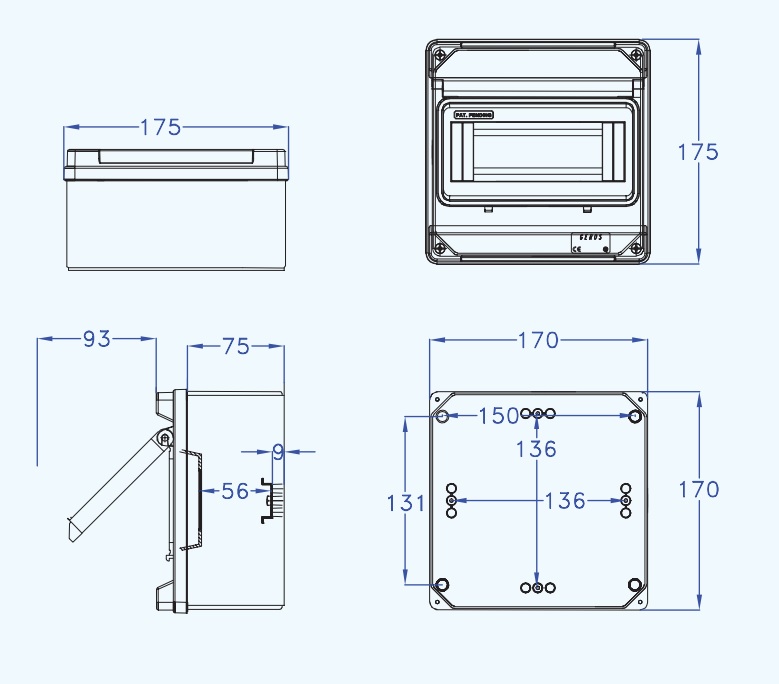

|Technical Drawing||Download Technical Drawing|
|Category||Consumer Unit Enclosure|
Grey ABS IP65 consumer unit enclosure with one hinged inspection window. 6-8 modules.
Also available in white. Please contact sales on 01908 325100 for more information.
Approval certificate IMQ N°EL071
Reference norms CEI 23-48 I Ed. 1998 CEI 23-49:1996+V1:2001+V2:2003
Products conform to the essential requisites of the directive IEC 60670-24:2005 I Ed. E IEC 60670-1:2002
Temperature during Installation: -5°C to + 60°
Glow wire test:650°C EN 60335-1:94+IEC695-2-1
Ageing test according to CEI 23-48: 7 days at 70°
Pressure test with the sphere according to CEI 23-48: 70°C
Use tension 400V-50HZ
Insulation resistance > 5MΩ
Shock resistance: IK07
