|Dimensions||240 × 190 × 120 mm|
Grey with Transparent lid

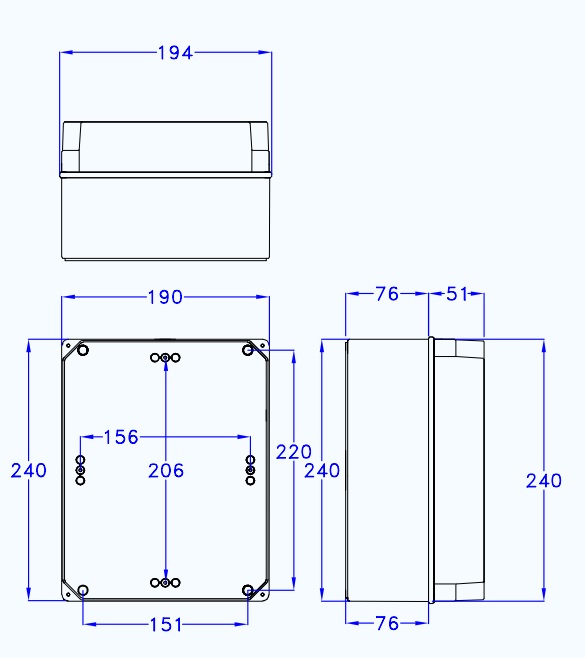

|Technical Drawing||Download Technical Drawing|
|Categories||Din Rail Enclosures, GR Series - IP65 Enclosures, GR Series - IP65 Enclosures, IP Rated Enclosures, IP65 Enclosures, Plastic Enclosures|
The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.
The GR17208 clear lid enclosure is ideal for electrical installations and can be used as a junction box.
Internally there are mounting points for securing PCB or din rails and four small knockout points on the base for easy mounting.
The enclosure is sealed by stainless steel fixings which are included, external wall mounting kits and mounting plates are available to purchase from our accessories.
Grey lid option available – GR17240
All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email email@example.com or ask us on live chat.
- Grey ABS material (RAL7035)
- IP65 rated enclosure
- Temperature resistance -5°C to +60°C
- Glow wire test: 650°C IEC 60695-2-1
- Clear polycarbonate lid
