| Dimensions | 380 × 280 × 180 mm |
|---|---|
| Colour | Grey with Transparent lid |
| IP Rating | IP65, IP66, IP67 |
| Part Number | PC 3828 18 T |

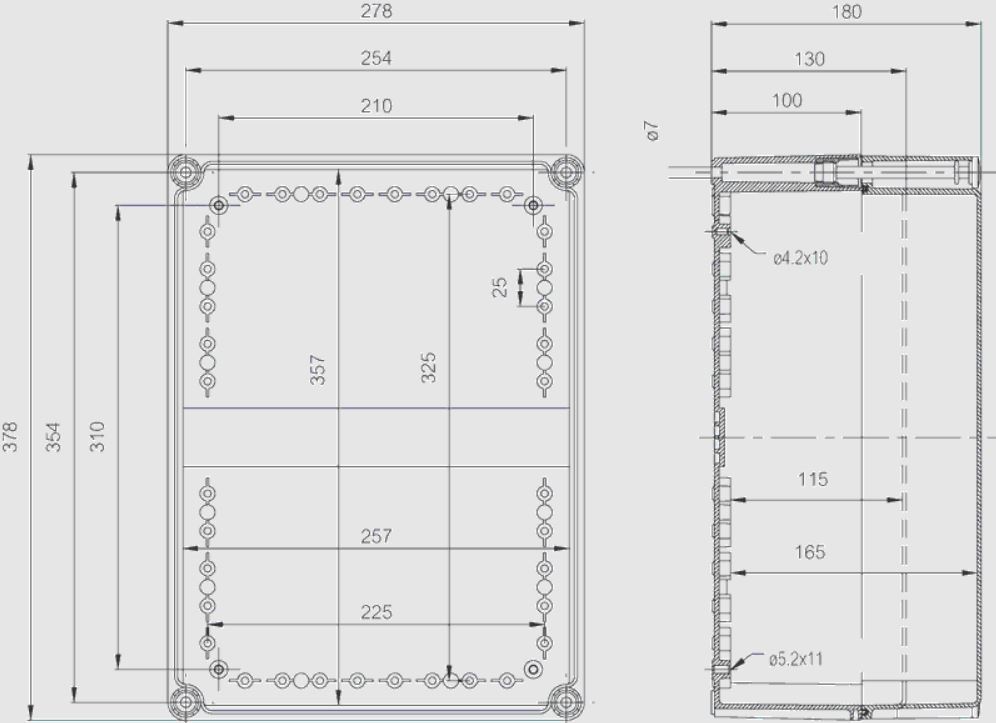

| Technical Drawing | Download Technical Drawing |
| Categories | Fibox Enclosures, IP65 Enclosures, IP66 Enclosures, IP67 Enclosures, Solid Series |
PC 3828 18 T
£151.62
380 × 280 × 180 mm
Materials:Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: Clear transparent
Gasket material: Polyurethane
Temperatures:Temperature °C (short term): -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Ratings:Ingress Protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5″
Glow Wire Test (IEC 695-2-1): 960 °C
Quantity discounts
| 1-49 | 50-100 | 101+ |
| £151.62 | £144.04 | £136.46 |
