| Dimensions | 200 × 120 × 25 mm |
|---|---|
| Colour | Black |
| IP Rating | IP65 Sealing Kit Available |
| Part Number | 33133305 |

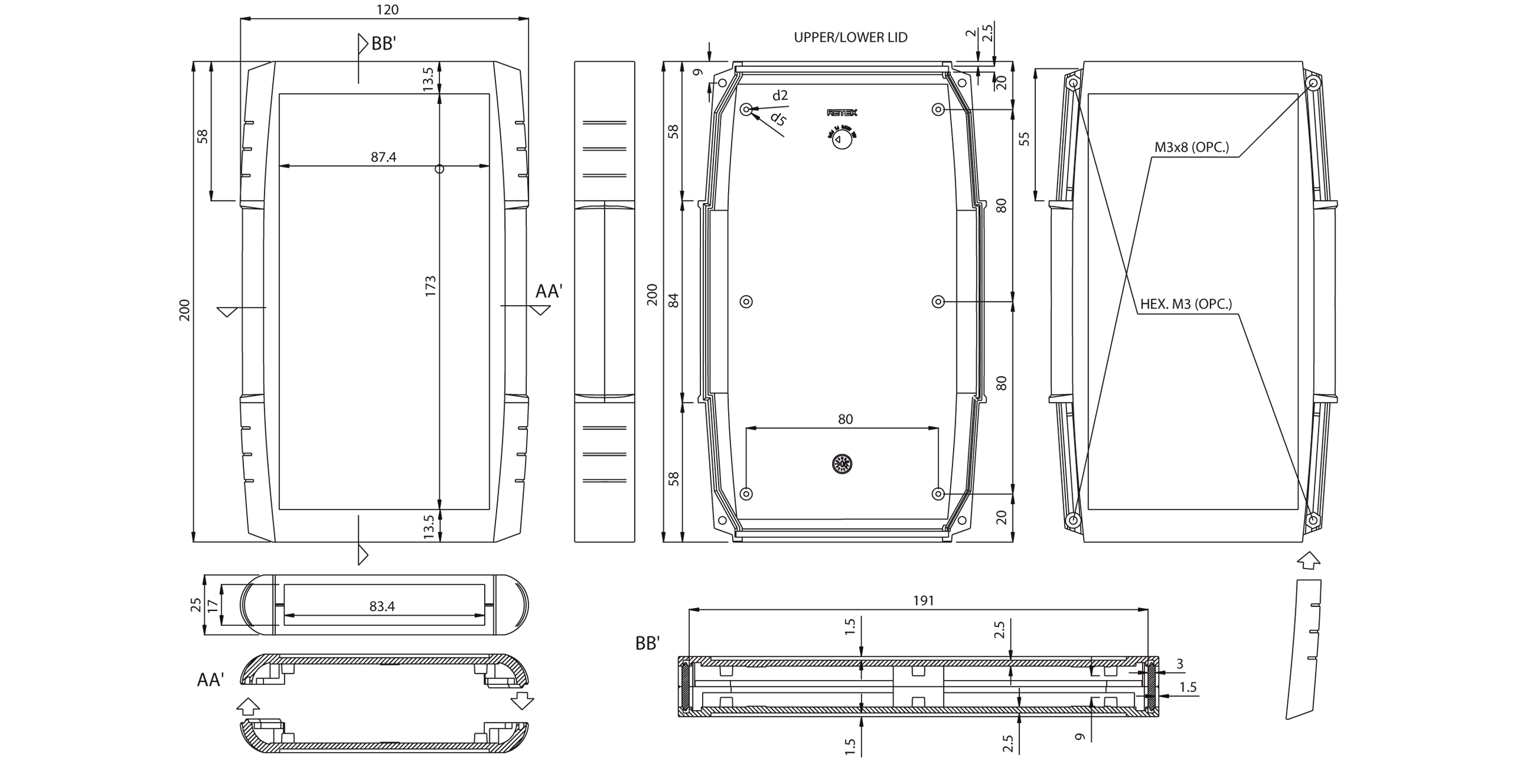

| Technical Drawing | Download Technical Drawing |
| Categories | 33 Series - Handheld Enclosures, Hand Held Enclosures IP65 Options, IP65 Enclosures, Plastic Enclosures |
33133305 Black Handheld Enclosure
£20.57
200 × 120 × 25 mm
The 33 series are ergonomically designed handheld enclosures. They benefit from an advanced snap fit design allowing the top and base to be secured using rubberised corners. The rubberised corners are available in a variety of colours to customise the appearance of the complete enclosure and they allow extra protection for your hardware as well as a comfortable grip for the user.
The case itself is moulded in high impact ABS material and is resistant to temperatures up to 85ºC. The enclosure can be sealed to IP65 using the optional sealing gasket. Each end of the enclosure has a removable panel to allow easy machining and addition of controls/LED’s and the lid and base both feature PCB mounts.
Key Features
- Black ABS material
- Rubberised corners are sold separately – please see accessories below
- Grey alternative available
Quantity discounts
| 1-49 | 50-100 | 101+ |
| £20.57 | £19.54 | £18.51 |
