33132003 Handheld Enclosure

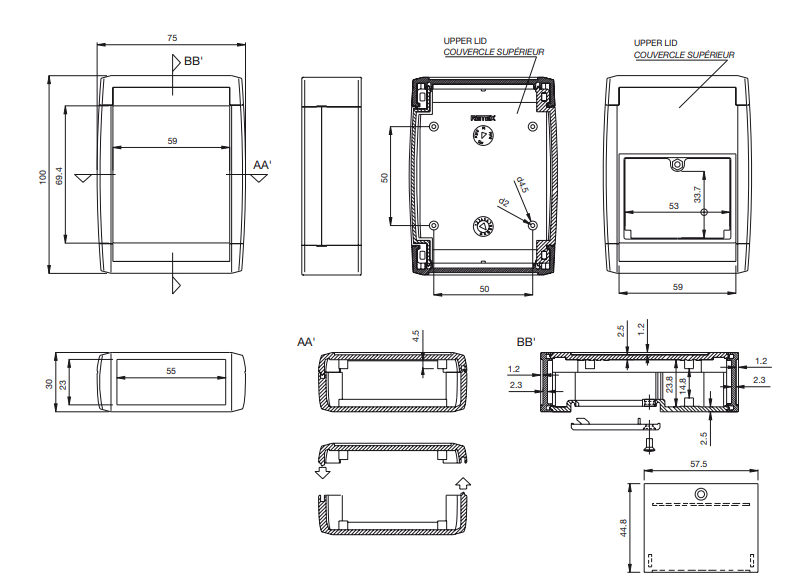

100 × 75 × 30 mm
The 32 series of handheld enclosures are designed with a unique screw-less pressure closing design aiding easy and quick assembly. The base and lid fix together and the end caps snap fit on either end of the enclosure to secure the unit.
This range is moulded in light grey and dark grey ABS material which is temperature resistant up to 85ºC and the enclosures have a wall thickness of 3mm providing great protection against impact.
The series offers optional battery compartments for each of its four size variants and the compartment is secured using a single screw.
This range of handheld enclosures benefits from a recessed area in the lid and end caps ideal for membranes/keypads also PCB mounts in the both the lid and base lid of the enclosure.
A sealing gasket is available as an accessory which press fits into the enclosure achieving IP65 rating.
Light Grey colour
All of our Handheld Enclosures can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact firstname.lastname@example.org for more information.
