| Dimensions | 280 × 280 × 130 mm |
|---|---|
| Colour | Grey |
| IP Rating | IP65, IP66, IP67 |
| Part Number | ABS 2828 13 |

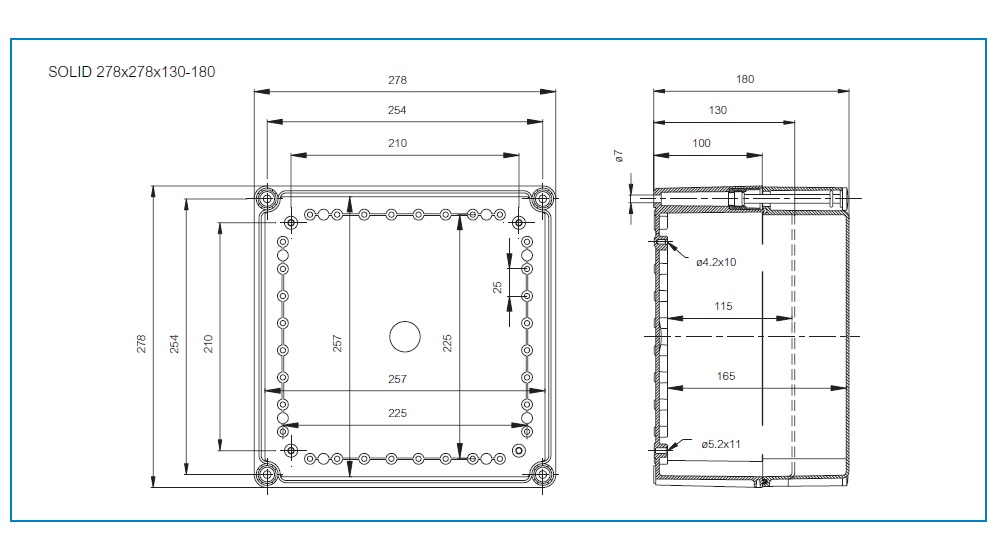

| Technical Drawing | Download Technical Drawing |
| Categories | Fibox Enclosures, IP65 Enclosures, IP66 Enclosures, IP67 Enclosures, Solid Series |
ABS 2828 13
£68.22
280 × 280 × 130 mm
Material: ABS
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:Temperature °C (short term): -40 … 80
Temperature °C (continuous): -40 … 60
Temperature °F (short term): -40 … 175
Temperature °F (continuous): -40 … 140
Ratings:Ingress Protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
Flammability Rating: UL 94 HB
Glow Wire Test (IEC 695-2-1): 650 °C
Quantity discounts
| 1-49 | 50-100 | 101+ |
| £68.22 | £64.81 | £61.40 |
