|Dimensions||151 × 83 × 33.5 mm|
IP65 Sealing Kit Available
|Technical Drawing||Download Technical Drawing|
|Categories||Hand Held Enclosures IP65 Options, IP65 Enclosures, MB Series - Handheld Enclosures, Plastic Enclosures|
ES109N Handheld Enclosure

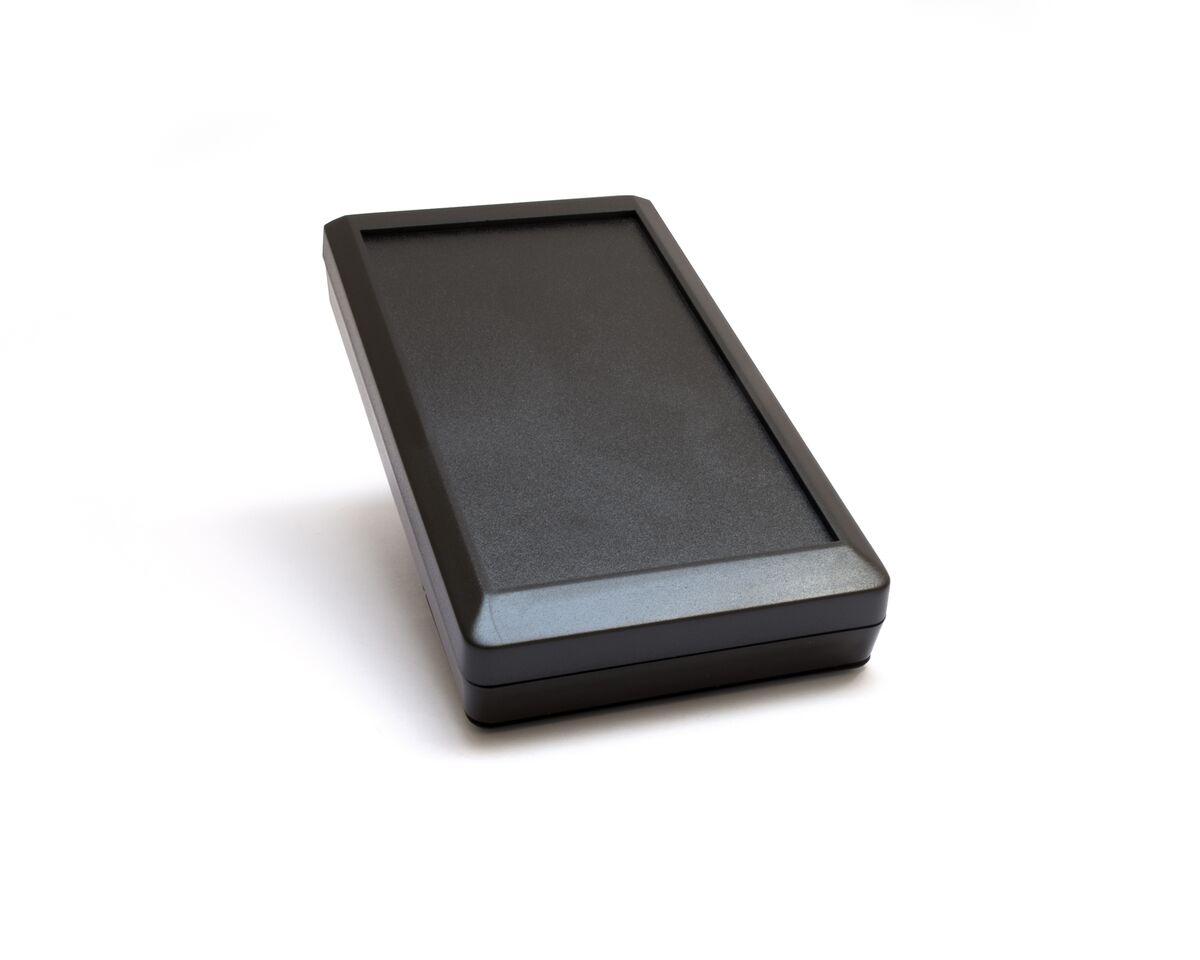

The ES109 is a black handheld enclosure suitable for housing mobile control devices and data collection units. The enclosure is moulded in ABS material and the rugged design ensures the enclosure will stand up to impact. An optional gasket is available and this will create an IP65 rating helping to prevent water and dust ingress.

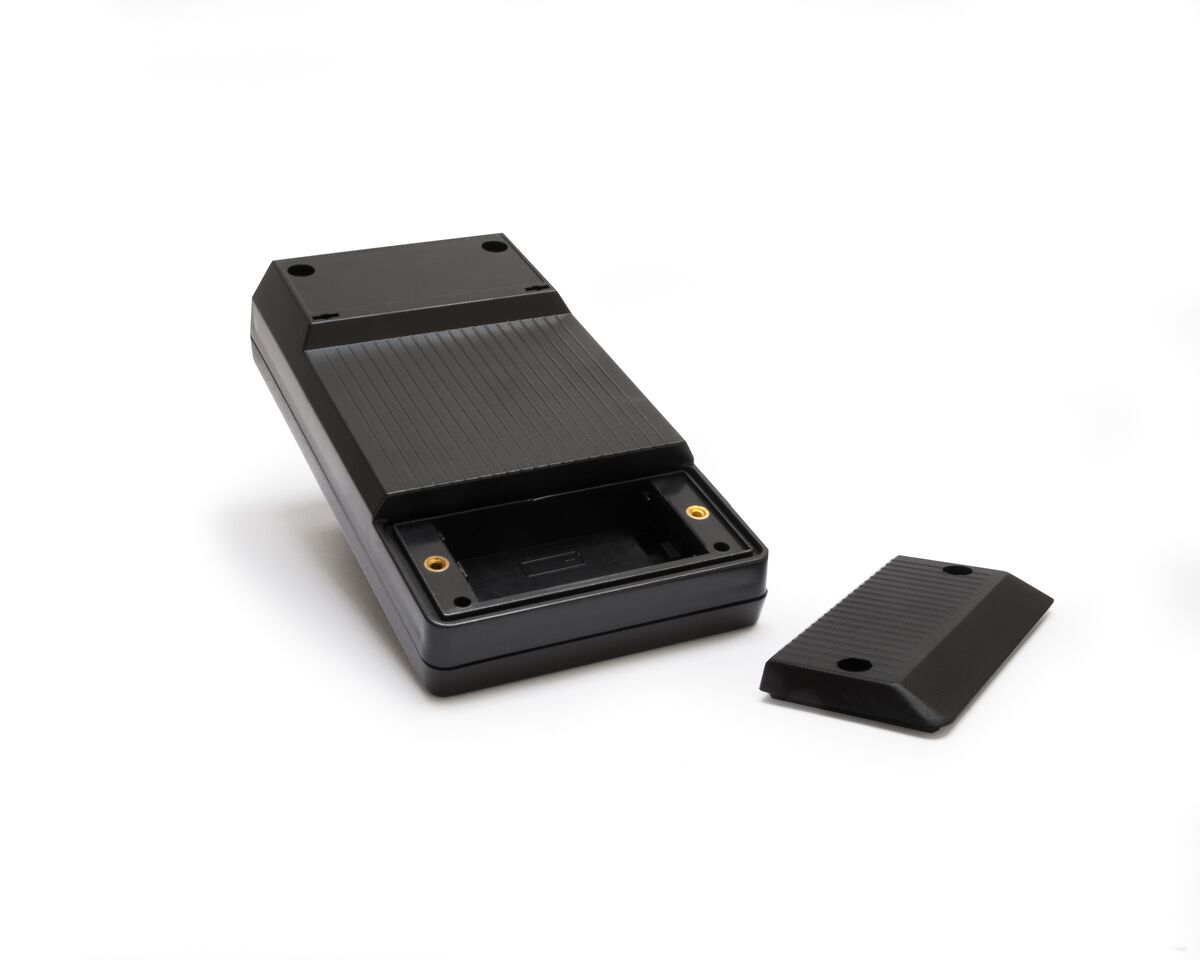

This model has a battery compartment on the back of the enclosure for housing 1 x 9V battery or 2 x AA batteries. The front face of the handheld enclosure has a recessed area suitable for membrane keypads measuring 129.5 x 68mm an alternate model (ES209) also has a cut out suitable for mounting LCD. PCB mounts are situated in both the top and base of the unit allowing the user to mount more than one PCB.

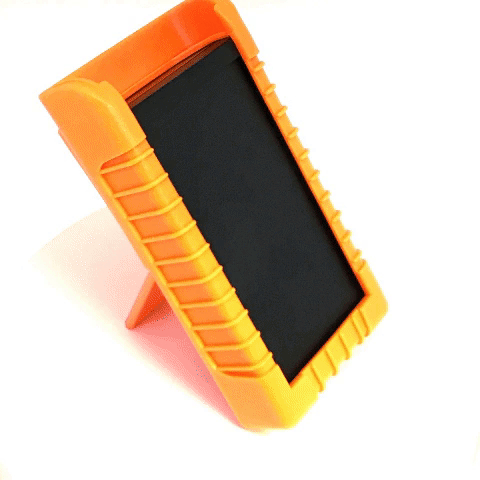

A range of protective rubber boots with tilt stand are available which increase the protection the enclosure provides by making them more visible and aiding protection against impact.
All of our Handheld Enclosures and protective boots can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact email@example.com for more information.
