| Dimensions | 190 × 140 × 140 mm |
|---|---|
| Colour | Grey with Transparent lid |
| IP Rating | IP65 |
| Part Number | GR17215 |

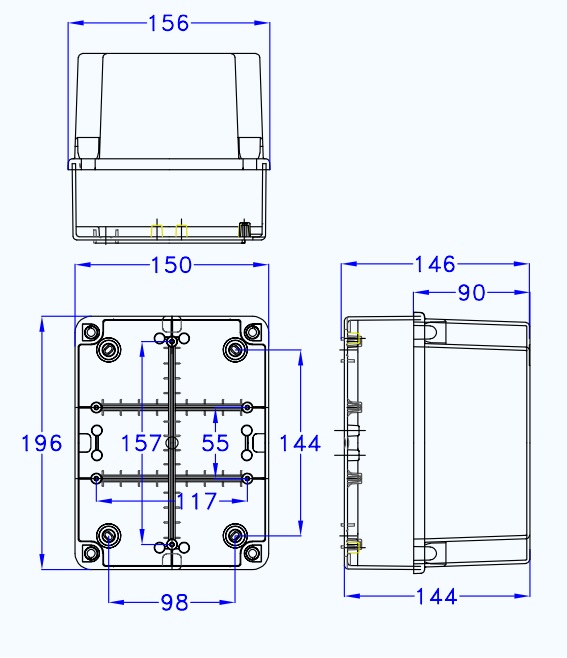

| Technical Drawing | Download Technical Drawing |
| Categories | GR Series - IP65 Enclosures, GR Series - IP65 Enclosures, IP Rated Enclosures, IP65 Enclosures, Plastic Enclosures |
GR17215
£19.46
190 × 140 × 140 mm
The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.
The GR17215 is ideal for electrical installations and can be used as a junction box.
Internally there are mounting points for securing PCB and mounting plates as well as channels for mounting din rails.
The enclosure is sealed by plastic fixings which are included and the enclosure can be wall mounted using knockout points on the base, external wall mounting kits are available to purchase from our accessories.
The GR17215 has an innovative lid design which allows the screws to act as a hinge, please refer to gallery images.
Grey lid option available – GR17015
All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email sales@evatron.com or ask us on live chat.
- Grey ABS material (RAL7035)
- IP65 rated enclosure
- Temperature resistance -5°C to +60°C
- Glow wire test: 650°C IEC 60695-2-11
- Clear hinged lid
