GR17208

ยฃ6.34

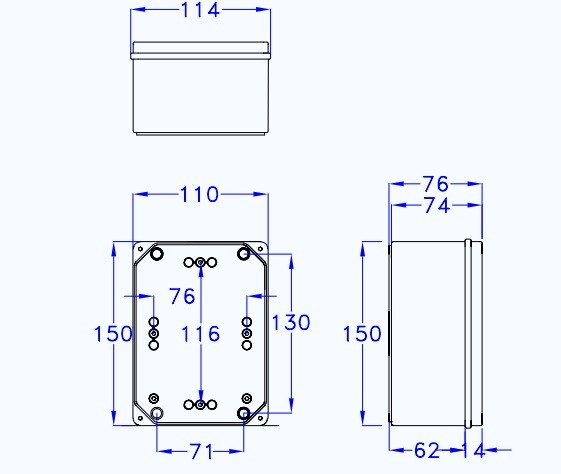

150 ร— 110 ร— 75 mm

The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.

The GR17208 clear lid enclosure is ideal for electrical installations and can be used as a junction box.

Internally there are mounting points for securing PCB or din rails and knockout points in the base for easy mounting.

The enclosure is sealed by stainless steel fixings which are included, external wall mounting kits are available to purchase from our accessories.

Clear lid option available โ€“ GR17008

All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email sales@evatron.com or ask us on live chat.

  • Grey ABS material (RAL7035)
  • IP65 rated enclosure
  • Temperature resistance -5ยฐC to +60ยฐC
  • Glow wire test: 650ยฐC IEC 60695-2-1
  • Clear polycarbonate lid
Quantity:
Request a sample

Customised enclosures

From simple modifications to full designs, we create enclosures to fit your needs.

Start customising

Delivery info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

info Additional information

dimensions Dimensions 150 ร— 110 ร— 75 mm
colourColour

Grey with Transparent lid

ipratingIP Rating

IP65

part number Part Number GR17208
