GR17015

ยฃ13.42

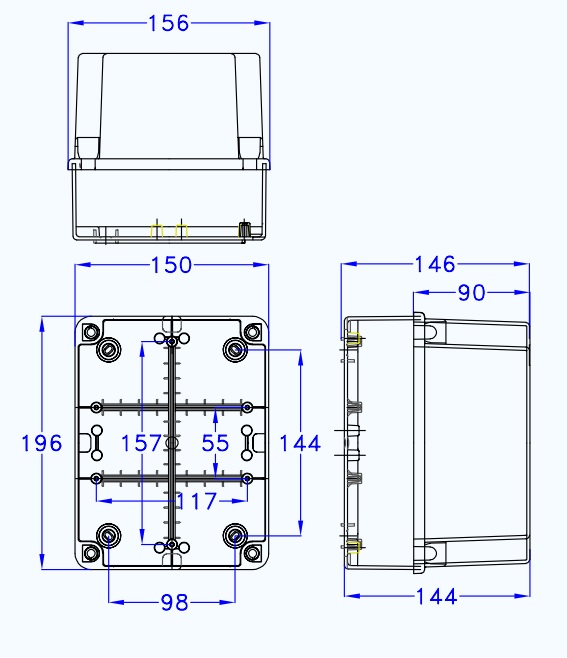

190 ร— 140 ร— 140 mm

The GR series are a range of low cost, high spec, IP65, ABS general purpose enclosures.

The GR17015 is ideal for electrical installations and can be used as a junction box.

Internally there are mounting points for securing PCB and mounting plates as well as channels for mounting din rails.

The enclosure is sealed by plastic fixings which are included and the enclosure can be wall mounted using knockout points on the base, external wall mounting kits are available to purchase from our accessories.

The GR17015 has an innovative lid design which allows the screws to act as a hinge, please refer to gallery images.

Clear lid option available โ€“ GR17215

All of our plastic enclosures can be modified to your exact requirements including CNC machining, screen screening and labels. For more information contact us on 01908 325100, email sales@evatron.com or ask us on live chat.

  • Grey ABS material (RAL7035)
  • IP65 rated enclosure
  • Temperature resistance -5ยฐC to +60ยฐC
  • Glow wire test: 650ยฐC IEC 60695-2-11
  • Hinged lid
Quantity:
Request a sample

Customised enclosures

From simple modifications to full designs, we create enclosures to fit your needs.

Start customising

Delivery info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

info Additional information

dimensions Dimensions 190 ร— 140 ร— 140 mm
colourColour

Grey

ipratingIP Rating

IP65

part number Part Number GR17015
