|Dimensions||165 × 100 × 44 mm|
IP65 Sealing Kit Available
|Technical Drawing||Download Technical Drawing|
|Categories||Hand Held Enclosures IP65 Options, IP65 Enclosures, MB Series - Handheld Enclosures, Plastic Enclosures|
EVAM109 Handheld Enclosure

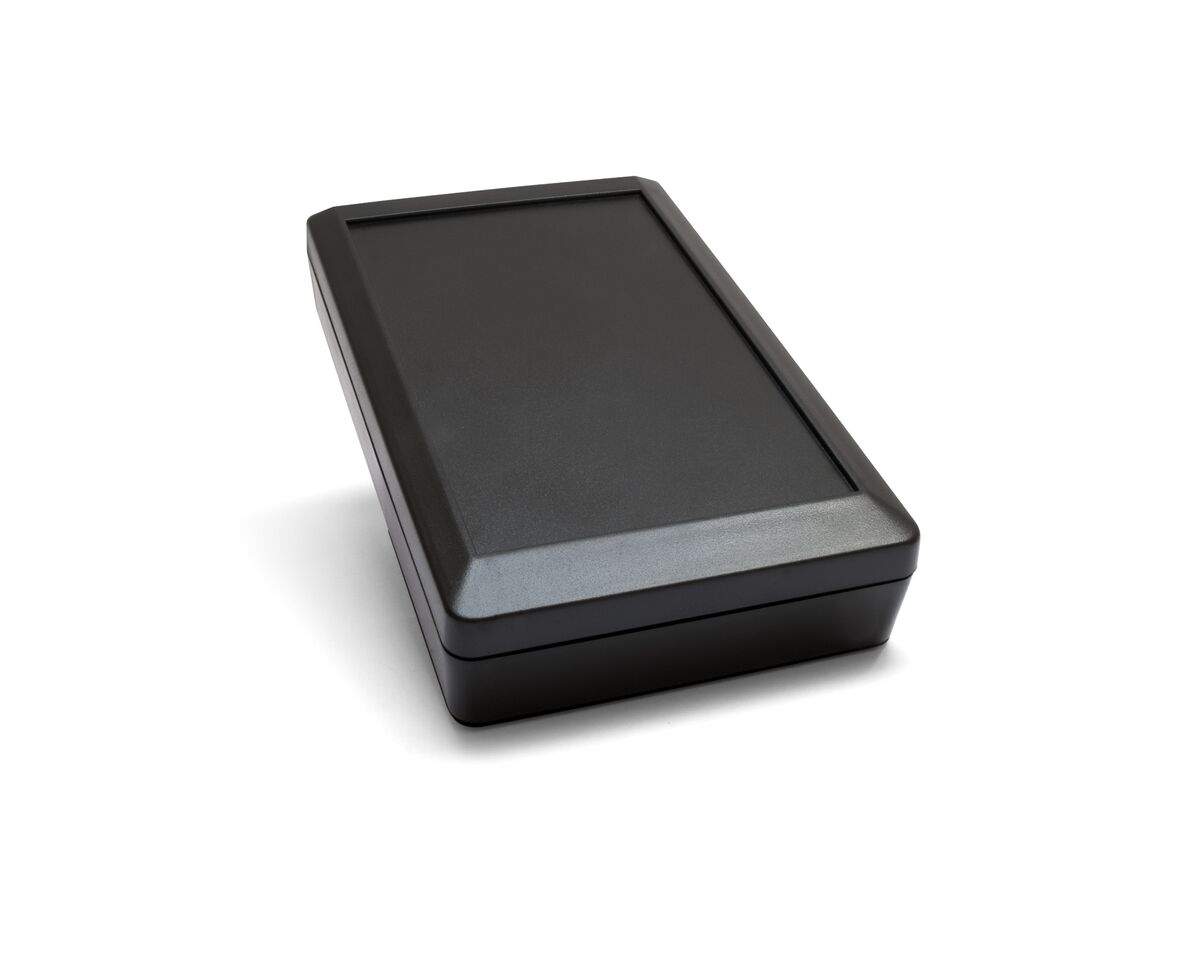

The EVAM109 is a handheld enclosure suitable for housing mobile control devices and data collection units. The enclosure is moulded in ABS material and the rugged design ensures the enclosure will stand up to impact. An optional gasket is available and this will create an IP65 rating helping to prevent water and dust ingress.

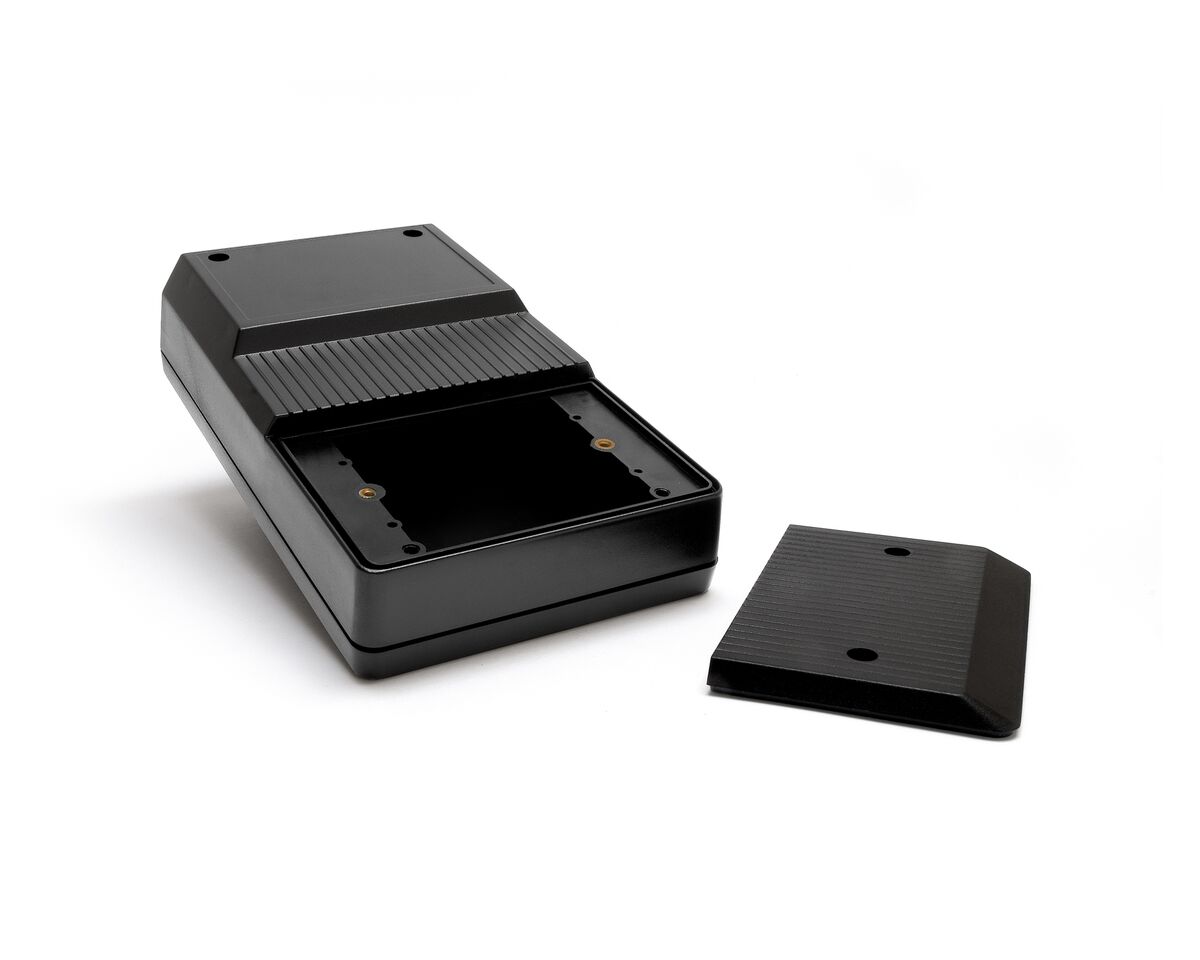

This model has a battery cover on the back of the enclosure capable of housing 2 x AA, 2 x 9V, 1 x 9V and 4 x AA battery compartments. The front face of the handheld enclosure has a recessed area suitable for membrane keypads measuring 138 x 81 x 2mm. PCB mounts are situated in both the top and base of the unit allowing the user to mount more than one PCB.
A range of protective rubber boots with tilt stand are available which increase the protection the enclosure provides by making them more visible and aiding protection against impact.
All of our Handheld Enclosures and protective boots can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact firstname.lastname@example.org for more information.
Not for sale in German and Benelux countries.
