EM209 Handheld Enclosure


195 × 101 × 44 mm

MB Series

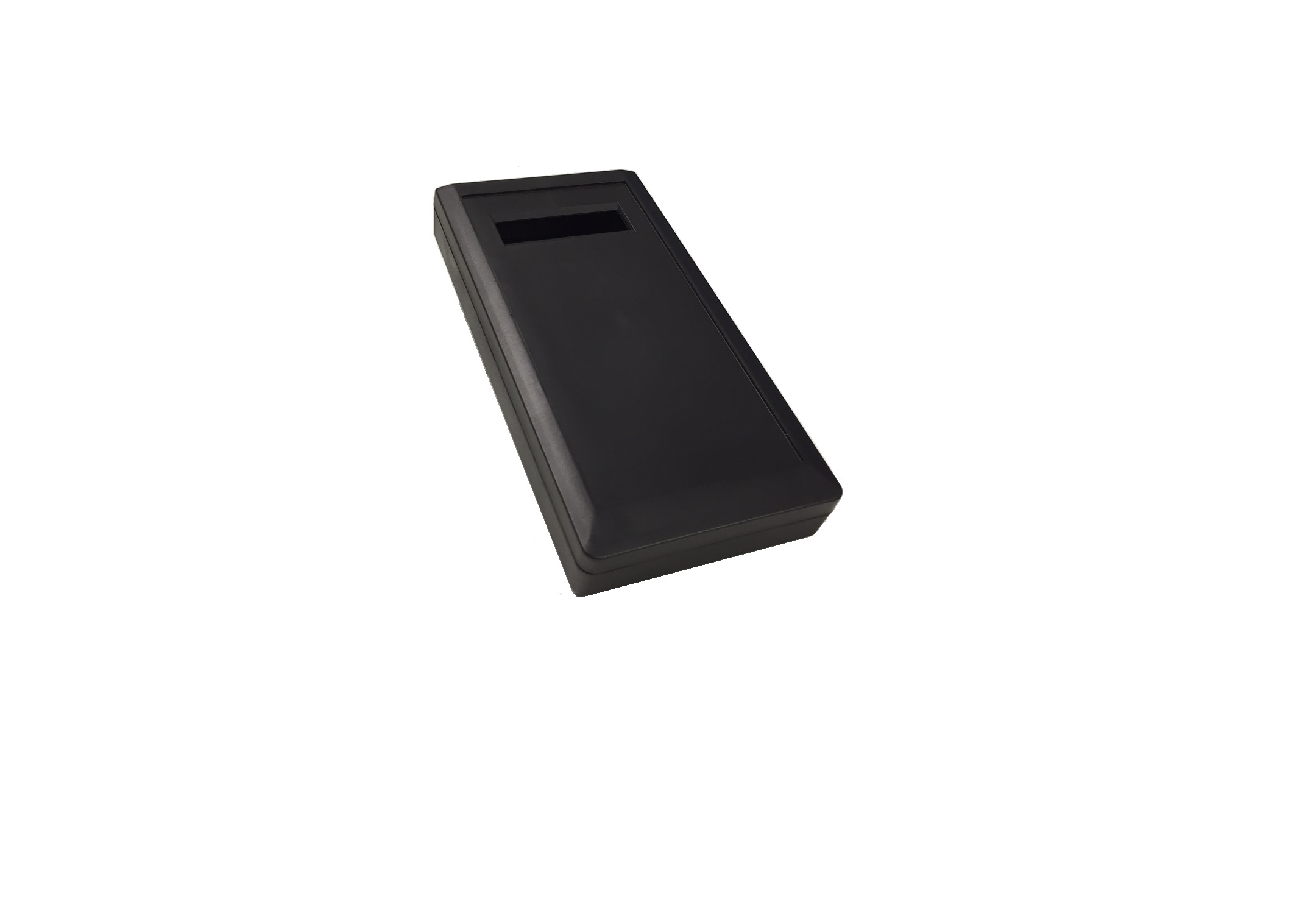

The EM209 is a large black handheld enclosure suitable for housing mobile control devices and data collection units. The enclosure is moulded in ABS material and the rugged design ensures the enclosure will stand up to impact. An optional gasket is available and this will create an IP65 rating helping to prevent water and dust ingress.

This model has a battery cover on the back of the enclosure capable of housing 2 x AA, 2 x 9V, 1 x 9V and 4 x AA battery compartments. The front face of the handheld enclosure a LCD cut out and a recessed area suitable for membrane keypads measuring 168 x 81 x 1.78mm, alternate versions of this enclosure are available without LCD cut out. PCB mounts are situated in both the top and base of the unit allowing the user to mount more than one PCB.

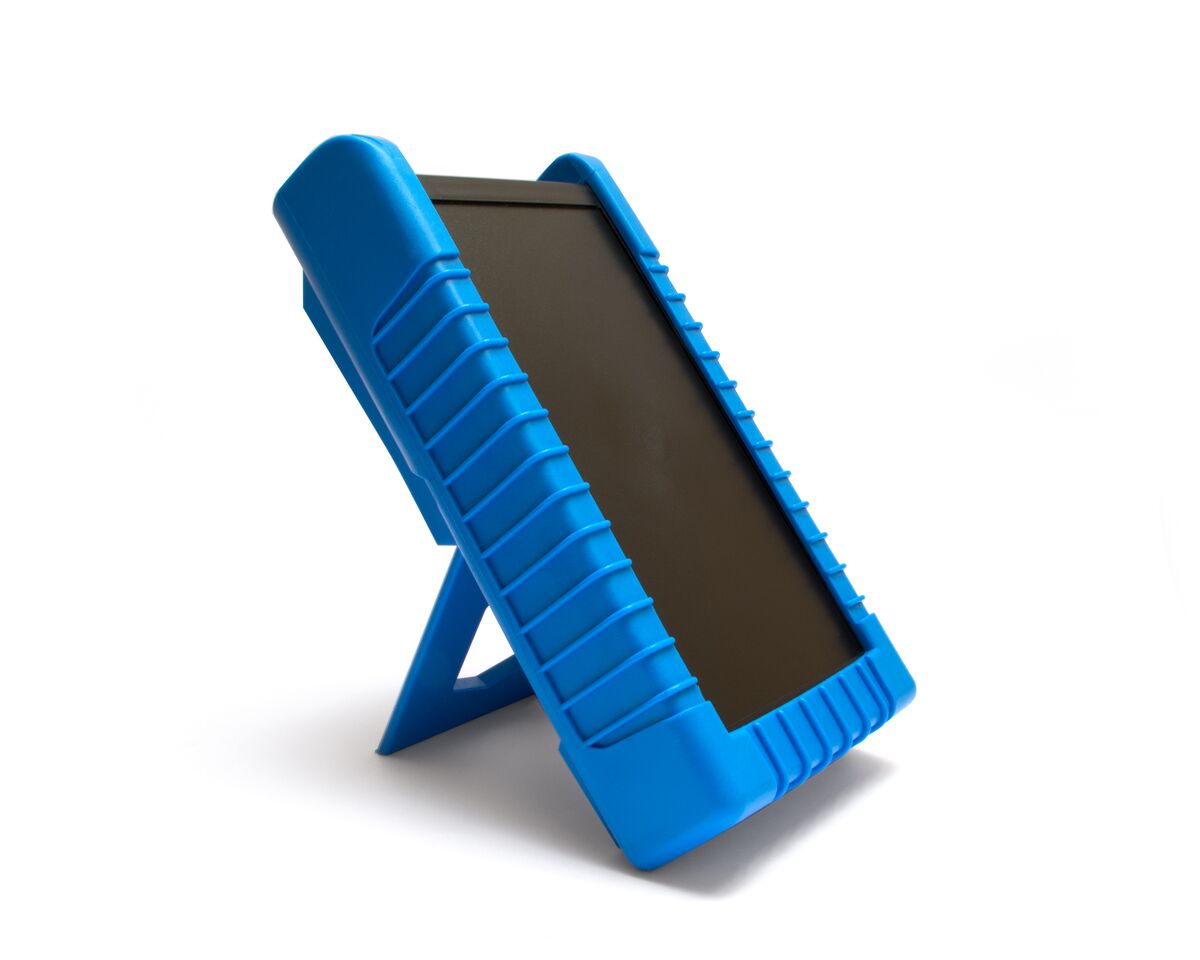

A range of protective rubber boots with tilt stand are available which increase the protection the enclosure provides by making them more visible and aiding protection against impact.

All of our Handheld Enclosures and protective boots can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact sales@evatron.com for more information.

Not for sale in German and Benelux countries.

Quantity discounts
1-49 50-100 101+
£23.82 £22.63 £21.44
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

Dimensions 195 × 101 × 44 mm


IP Rating


Part Number EM209
Technical Drawing Download Technical Drawing
