|Dimensions||190 × 140 × 30 mm|

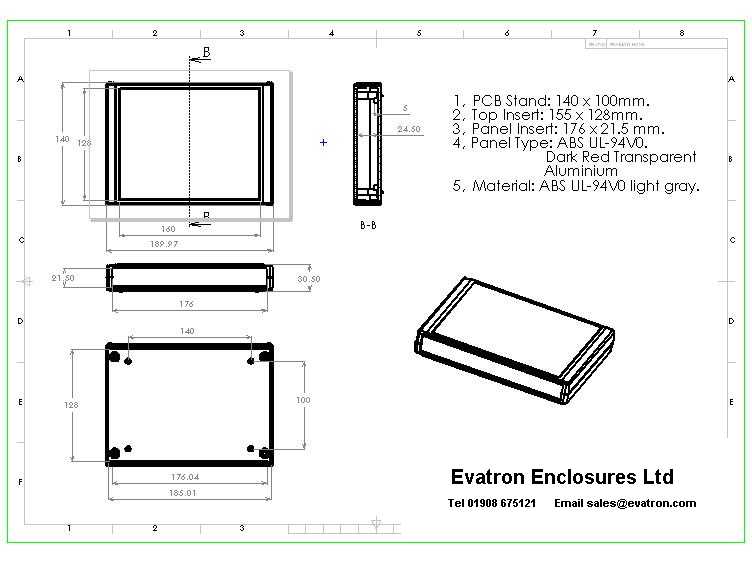

|Technical Drawing||Download Technical Drawing|
|Categories||Instrument Enclosures, Plastic Enclosures, RM Series - Desktop Enclosure|

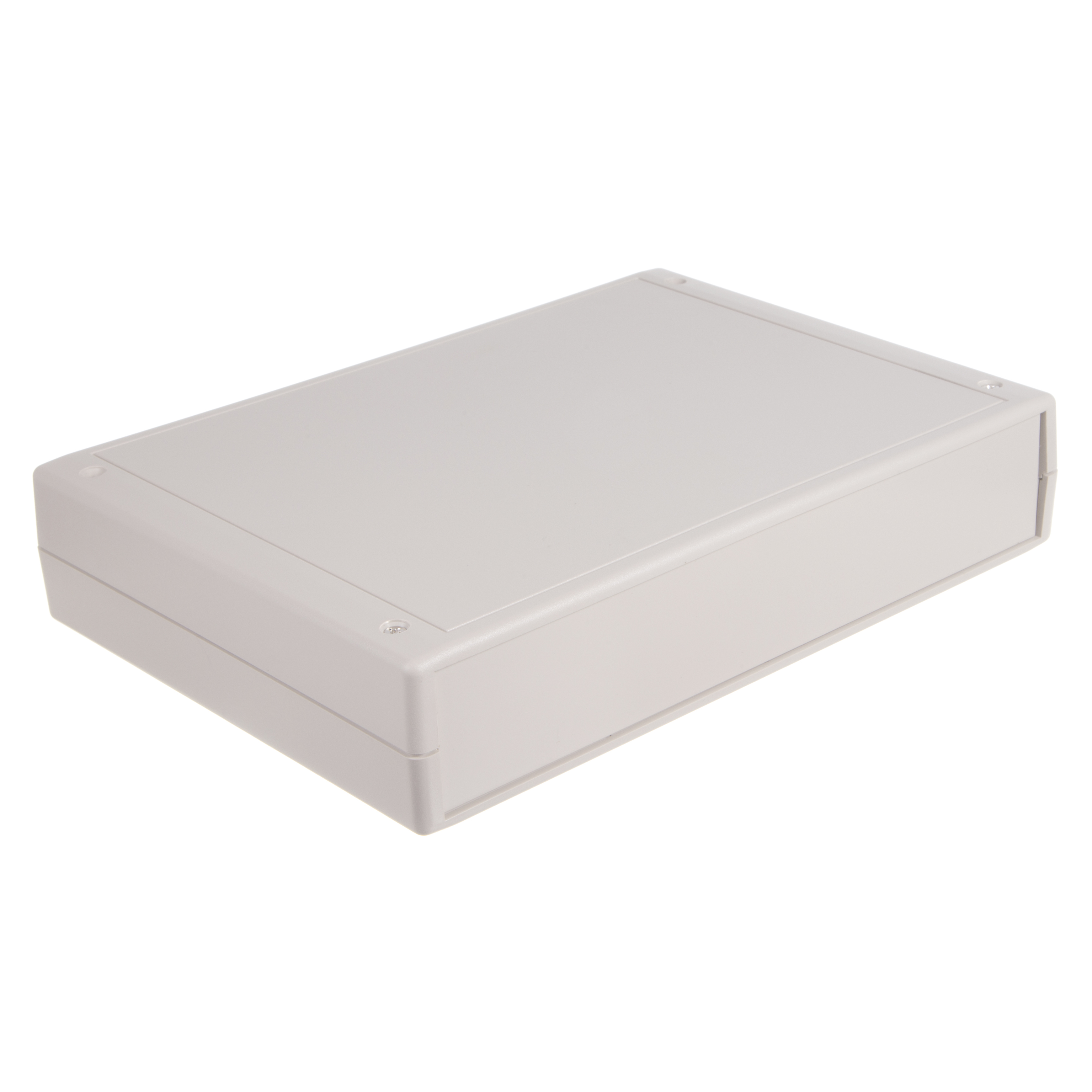

RM2055S Desktop Enclosure
The RM series is a range of desktop enclosures with removable front and rear panels.
They are moulded in light grey ABS HB material and feature PCB mounts in the base of the enclosure.
The removable panels are easily machined making them ideal for mounting connectors, sockets and buttons.
This range of desktop enclosures is supplied complete with PCB screws, case fixings and two panels. We have three different panel options for this series:
Standard grey – RM2055S
Infra Red PMMA – RM2055S-IR
Aluminium – RM2055SA
All of our Desktop Enclosures and Wall Mounted Enclosures can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact email@example.com for more information.
We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.
