|Dimensions||268 × 117.5 × 185 mm|

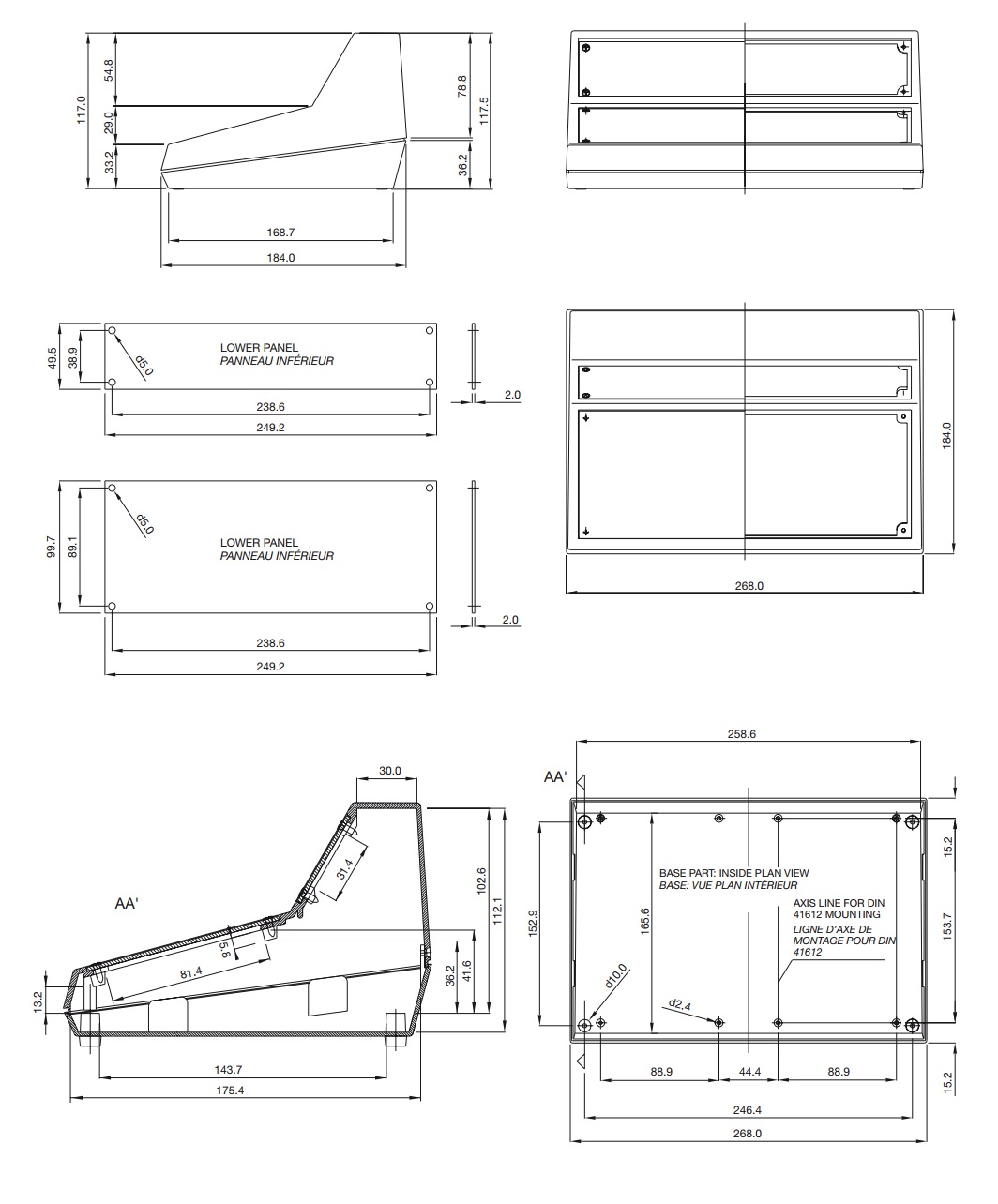

|Technical Drawing||Download Technical Drawing|
|Categories||Abox Series - Instrument Enclosure, Instrument Enclosures, Plastic Enclosures|

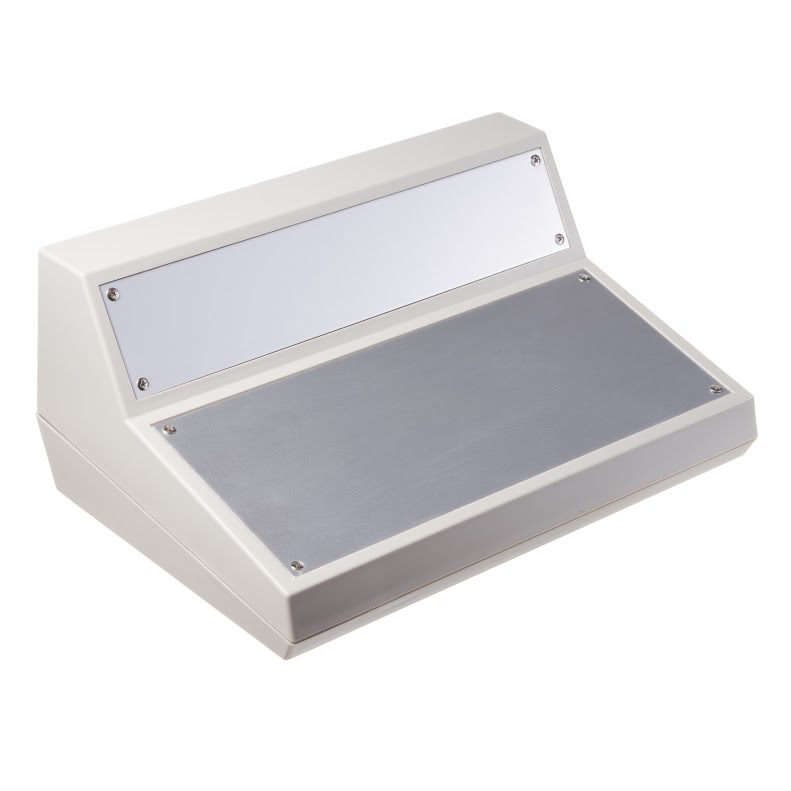

33020103 – Instrument Enclosure
The ABOX series of console enclosure with inclined operating area are specifically designed for industrial, medical, data control, test and management applications.
The instrument enclosure is moulded in high quality grey ABS plastic and can withstand temperatures up to 85ºC.
The sloped and angled panels of the console enclosure allow for easy display mounting and the bosses and slots in the enclosure base allow for multiple PCB mounting.
The desktop enclosures are supplied with lid, base, silver anodised aluminium panel, fixings screws and non-slip feet.
All of our console enclosures and instruments enclosures can be customised to your requirements including CNC machining, silk screening and EMI/RFI shielding. Contact firstname.lastname@example.org for more information.
