125 × 67 × 51 mm

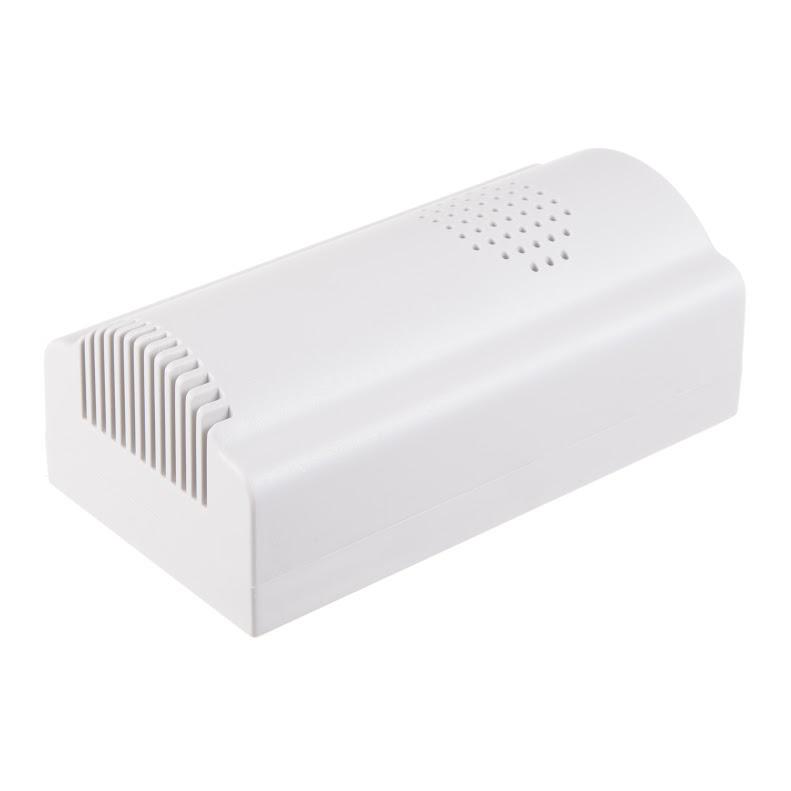

A uniquely designed sensor enclosure with raised rounded and stylised vented end.

Ventilation at the base of the enclosure allows free airflow making it an ideal housing for thermostats, sensor probes and all temperature, gas and humidity sensing applications. In addition the speaker style grill make the enclosure ideal for speaker and buzzer applications.

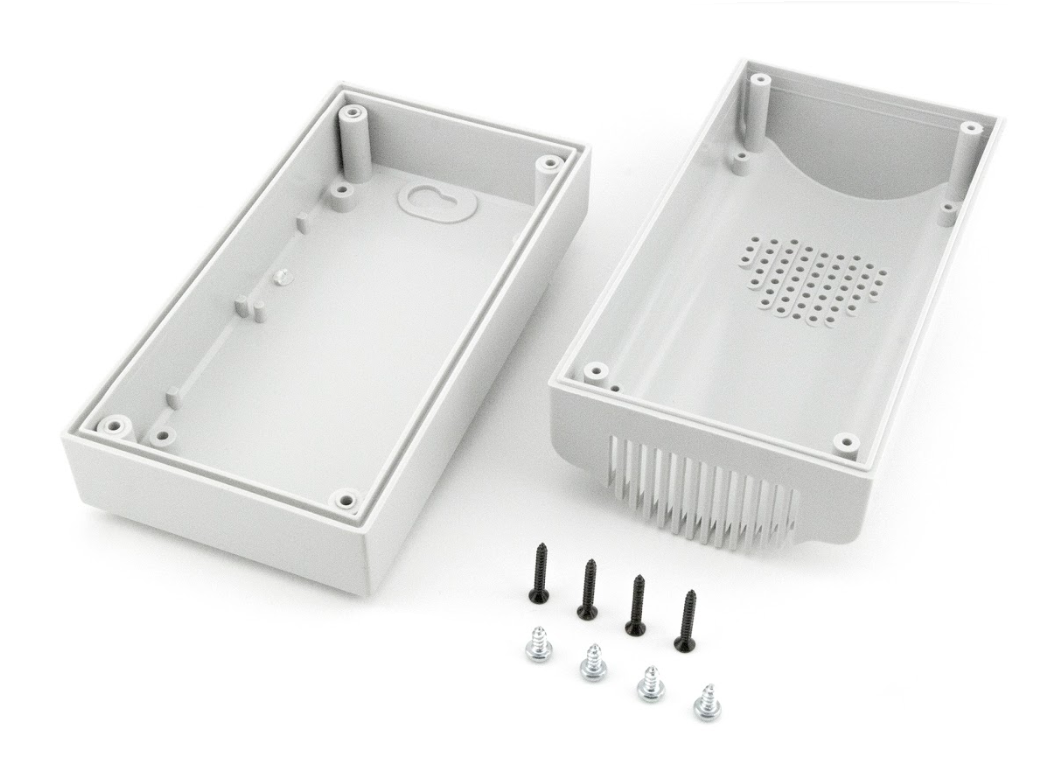

The enclosure benefits from PCB mounts in the base and lid of the enclosure.

A deeper version (PP77GB) is available and both variants can be supplied in black. Wall mounting kits are available.

We are able to provide low cost machining at the point of manufacture for this sensor enclosure. Contact us for details.


Quantity discounts
1-49 50-100 101+
£6.39 £6.07 £5.75
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

Dimensions 125 × 67 × 51 mm


Part Number PP77GA
Technical Drawing Download Technical Drawing
