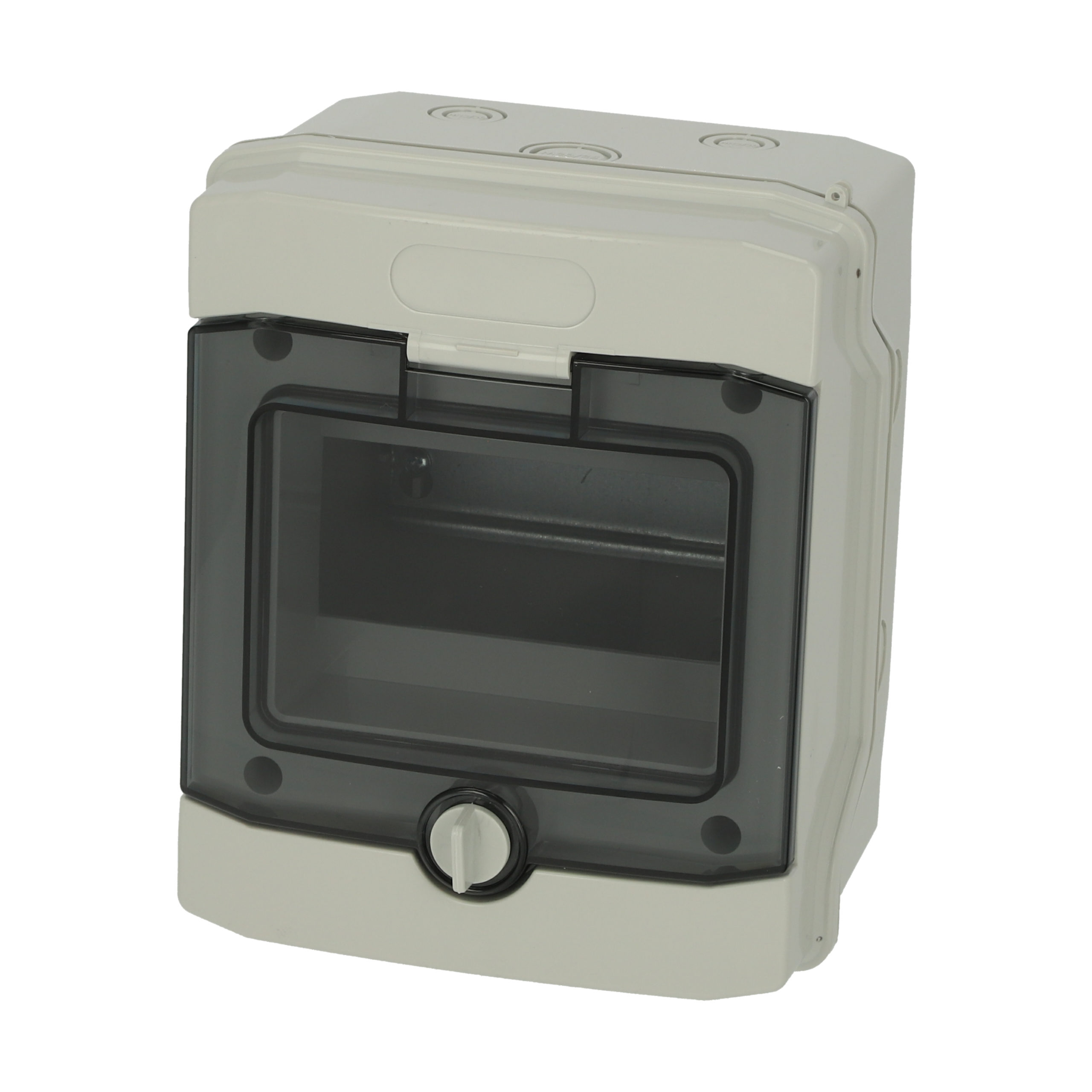

MCE65 8M

Modular component enclosure IP65

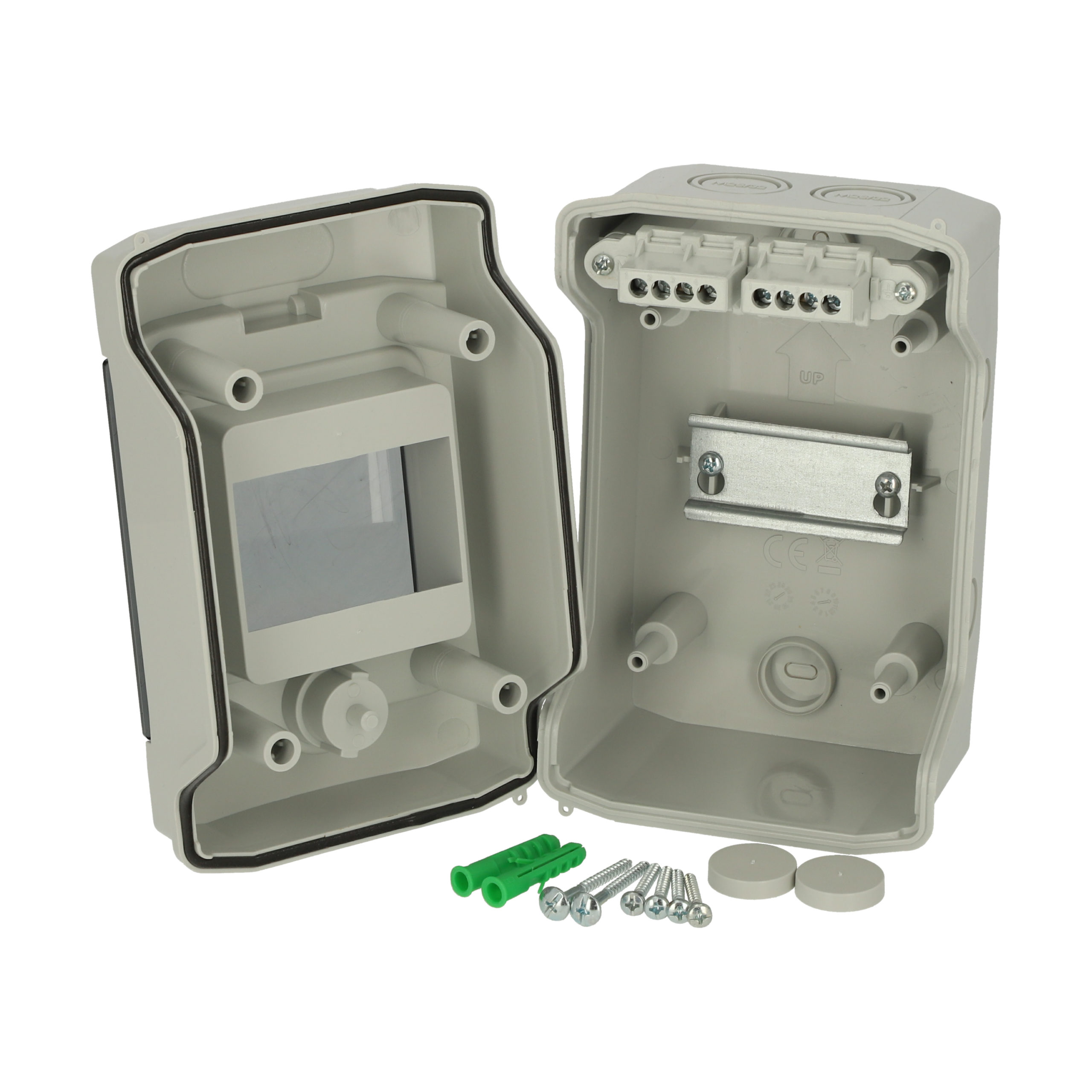

including DIN rail, insulated terminals (neutral and earth), cover for unused modules, plastic cap for screws.

Specification

• Ingress Protection: IP65
• Impact Resistance: IK08
• No. of modules/rows: 8/1
• Nominal voltage: In 63A
• Rated voltage: AC 400V / DC 1000V
• No. of terminals (6mm2): N/PE 8/8
• No. of knock-outs “top/bottom”: 1xM25/32
• No. of knock-outs “side”: 2xM20

Material

• Base: Acrylonitrile acrylic styrene
• Base colour: RAL7035
• Cover: Polycarbonate
• Cover colour: Transparent
• Glow Wire Test: 650°C
• Terminal holder: Self-extinguishing
• Temperature °C (continuous): -25 … +60 °C

Complete with cover for unused modules and insulated terminal.

Optional rubber grommets and lock accessory are available, please contact our sales team for more information.
