MCE65 24M

£75.73

384 × 319 × 144 mm

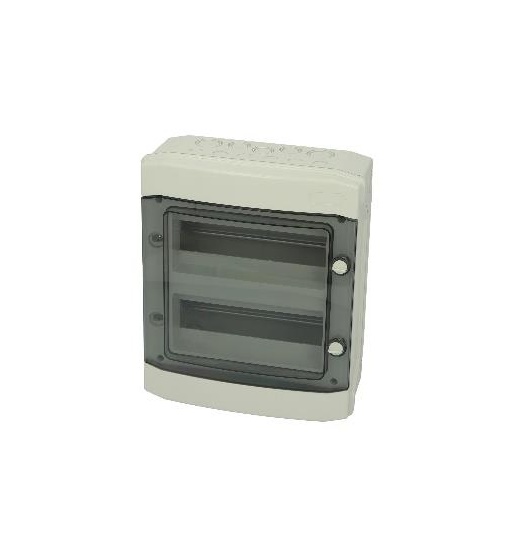

Modular component enclosure IP65
including DIN rail, insulated terminals (neutral and earth), cover for unused modules, plastic cap for screws.

Specification

  • Ingress Protection: IP65
  • Impact Resistance: IK08
  • No. of modules/rows: 24/2
  • Nominal voltage: In 63A
  • Rated voltage: AC 400V / DC 1000V
  • No. of terminals (6mm2): N/PE 13/13
  • No. of knock-outs “top/bottom”: 2xM32/40+3xM25/32+6xM20
  • No. of knock-outs “side”: 2xM25/32

Material

  • Base: Acrylonitrile acrylic styrene
  • Base colour: RAL7035
  • Cover: Polycarbonate
  • Cover colour: Transparent
  • Glow Wire Test: 650°C
  • Terminal holder: Self-extinguishing
  • Temperature °C (continuous): -25 … +60 °C

Complete with cover for unused modules and insulated terminal.

Optional rubber grommets and lock accessory are available, please contact our sales team for more information.

Quantity discounts
1-49 50-100 101+
£75.73 £71.94 £68.16
Quantity:
Request a sample

Price Match

Ask us to beat your competitor price for this product!

Delivery info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

info Additional information

dimensions Dimensions 384 × 319 × 144 mm
colourColour

Grey with Transparent lid

ipratingIP Rating

IP65

part number Part Number MCE65 24M
