| Dimensions | 259 × 319 × 144 mm |
|---|---|
| Colour | Grey with Transparent lid |
| IP Rating | IP65 |
| Part Number | MCE65 12M |
| Technical Drawing | Download Technical Drawing |
| Categories | Din Rail Enclosures, Fibox Enclosures, IP65 Enclosures, Modular Component Enclosure |
MCE65 12M
£52.81
259 × 319 × 144 mm

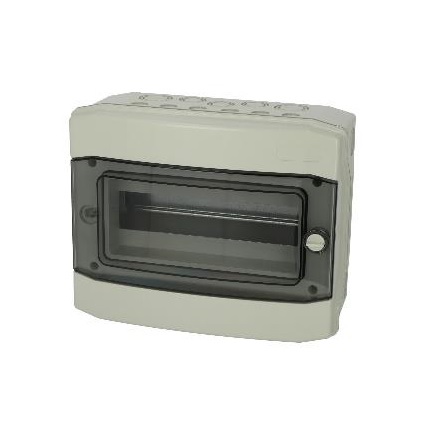

Modular component enclosure IP65

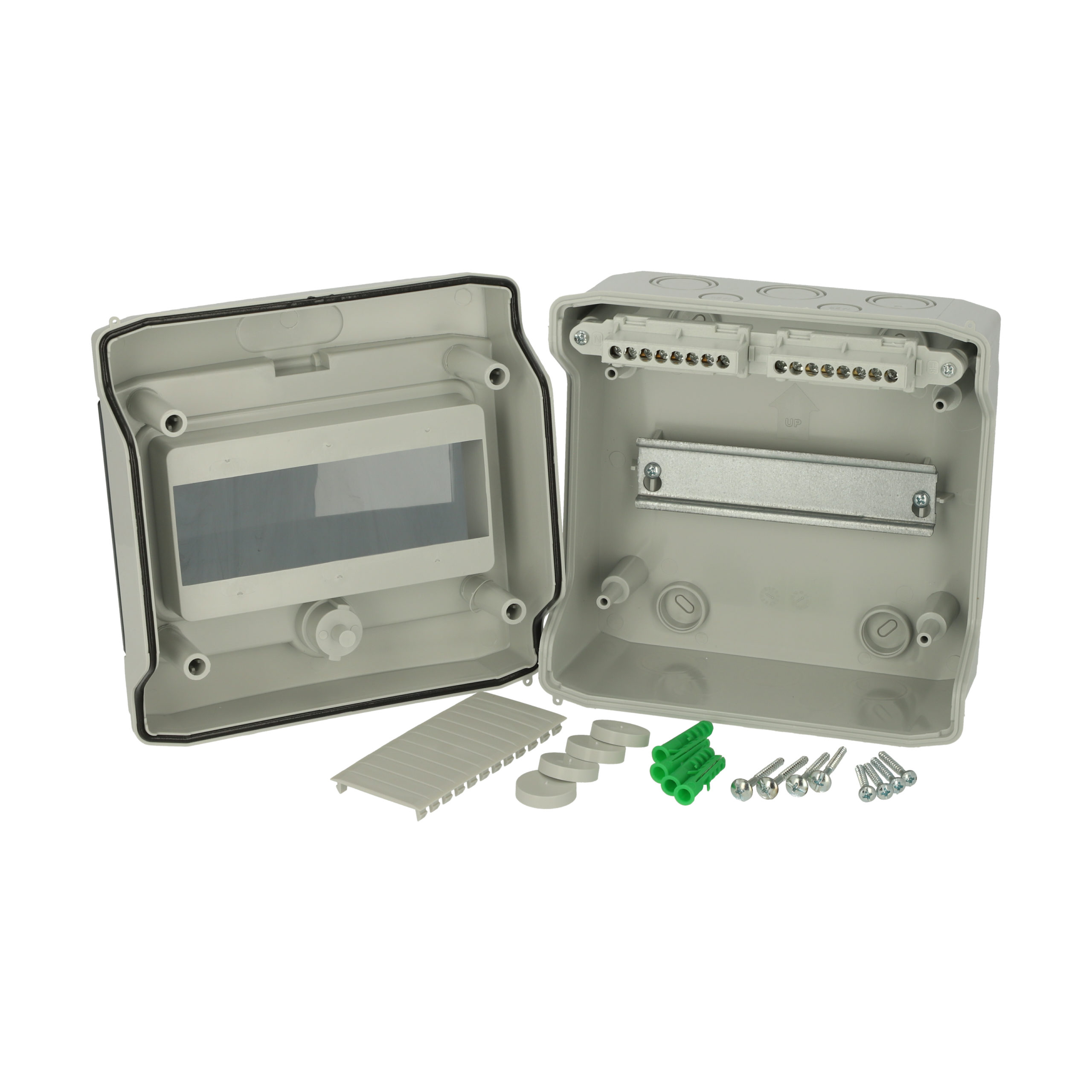

including DIN rail, insulated terminals (neutral and earth), cover for unused modules, plastic cap for screws.
Specification
- Ingress Protection: IP65
- Impact Resistance: IK08
- No. of modules/rows: 12/1
- Nominal voltage: In 63A
- Rated voltage: AC 400V / DC 1000V
- No. of terminals (6mm2): N/PE 10/10
- No. of knock-outs “top/bottom”: 2xM32/40+3xM25/32+6xM20
- No. of knock-outs “side”: 2xM25/32
Material
- Base: Acrylonitrile acrylic styrene
- Base colour: RAL7035
- Cover: Polycarbonate
- Cover colour: Transparent
- Glow Wire Test: 650°C
- Terminal holder: Self-extinguishing
- Temperature °C (continuous): -25 … +60 °C
Complete with cover for unused modules and insulated terminal.
Optional rubber grommets and lock accessory are available, please contact our sales team for more information.
