ES109PB Handheld Enclosure


85 × 46 × 16 mm

The ES109PB handheld enclosure is moulded in black ABS. The low profile makes this handheld enclosure easy to handle and the user should have no issue accessing all available controls using one hand.


The case has an internal battery compartment to house 2 x N (LR1) batteries and a recess in the lid to accommodate membranes and control pads and PCB mounts in the base.


An optional sealing gasket is available to achieve IP65 rating helping to prevent water and dust ingress. The handheld enclosure also benefits from additional accessories such as protective rubber boots protecting the enclosure against impact ensuring your hardware is safe.


All of our Handheld Enclosures and protective boots can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact for more information.

Not for sale in Germany and Benelux countries.

Quantity discounts
1-49 50-100 101+
£6.75 £6.41 £6.08
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing or by using our live chat service.

Dimensions 85 × 46 × 16 mm


IP Rating

IP65 Sealing Kit Available

Part Number ES109PB

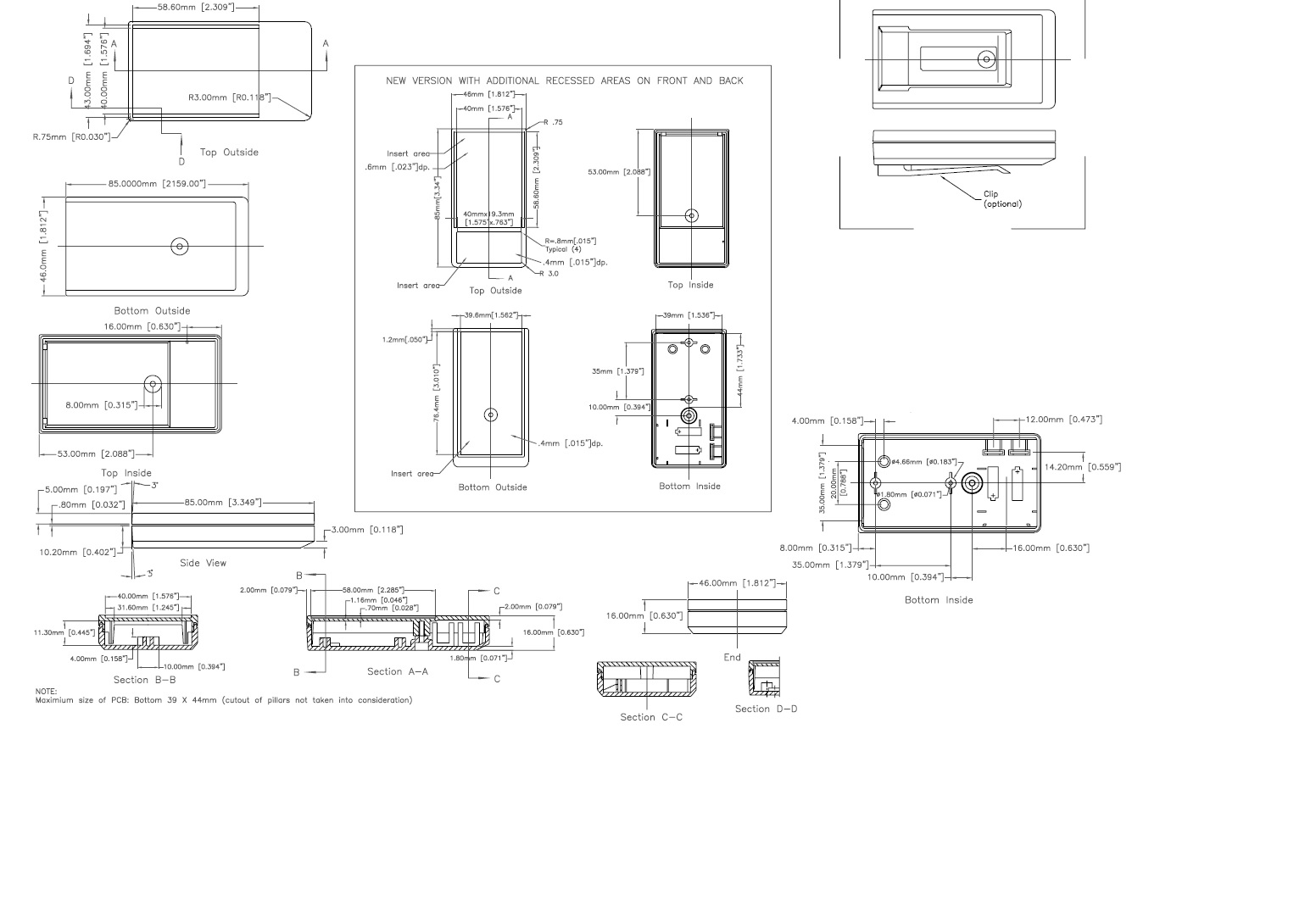

Technical Drawing Download Technical Drawing
Categories , , ,

Accessories for this product
