| Dimensions | 104 × 72 × 26 mm |
|---|---|
| Colour | Black |
| Part Number | EVA-050B |

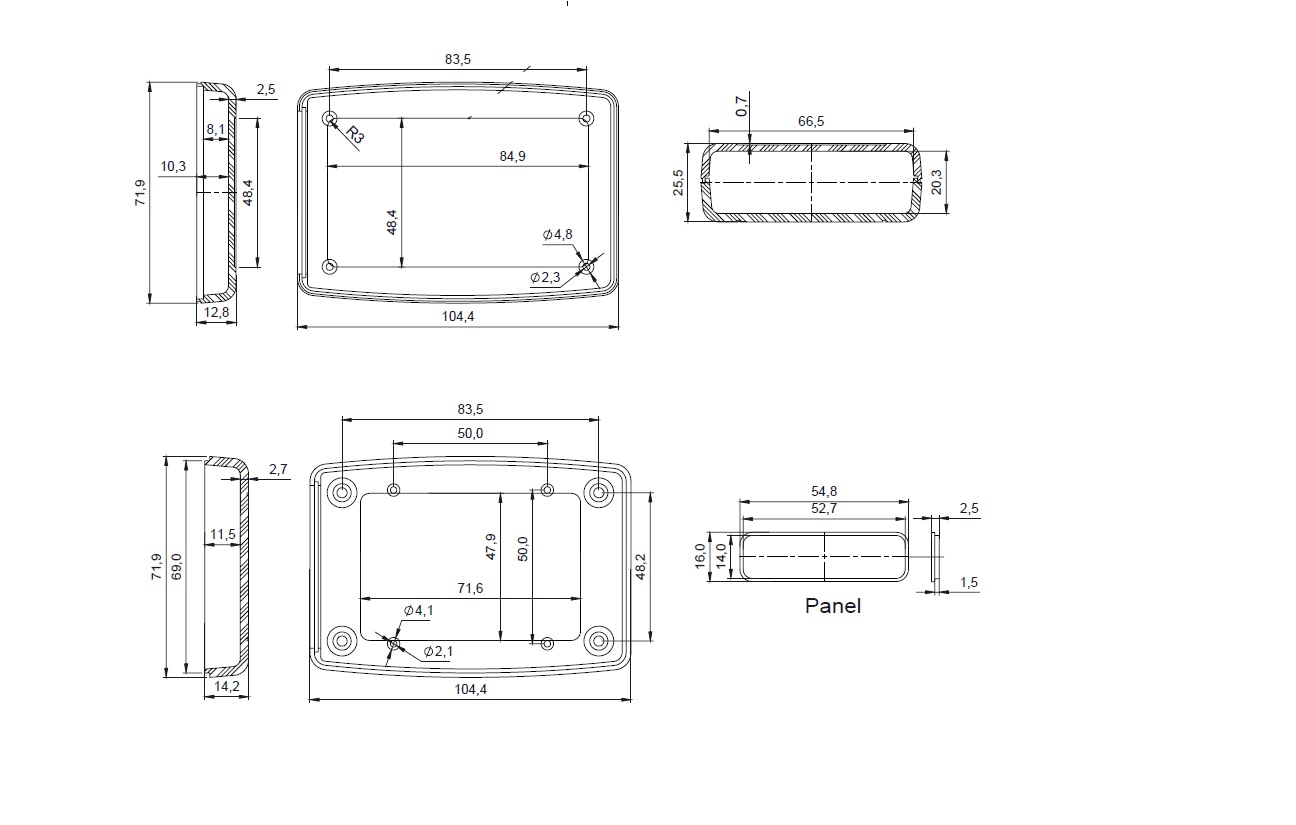

| Technical Drawing | Download Technical Drawing |
| Categories | HH Series, New Products |
EVA-050 Black
£4.15
104 × 72 × 26 mm

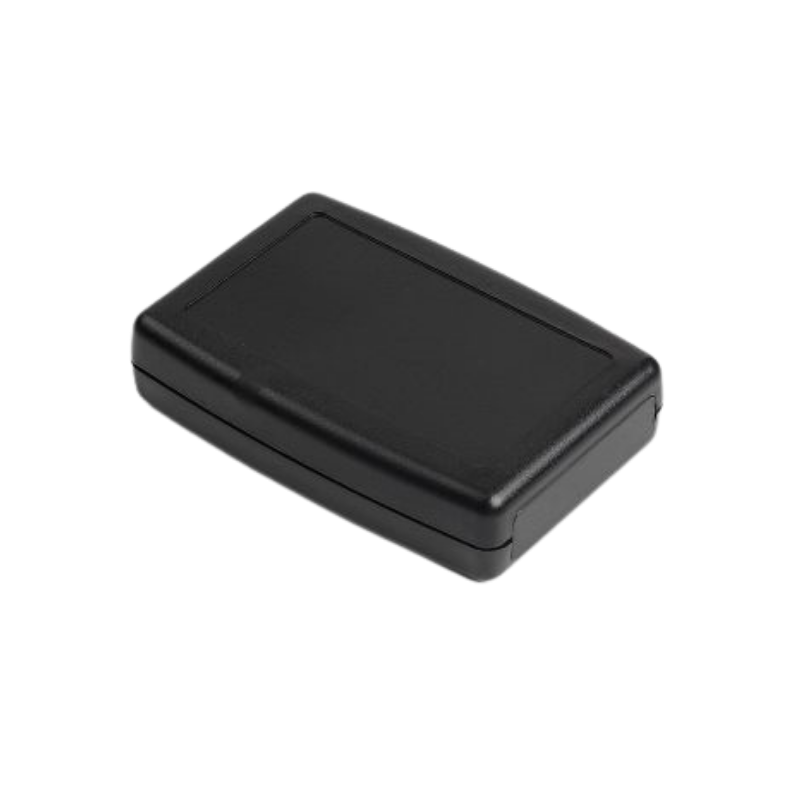

The EVA-050 is a handheld enclosure moulded in ABS UL94 HB material.
The top face has recessed area which can be used for membranes and labels. The curved side profile allows these models to sit comfortably in the palm of your hand and the removable end panel make these an ideal choice for remote control applications.

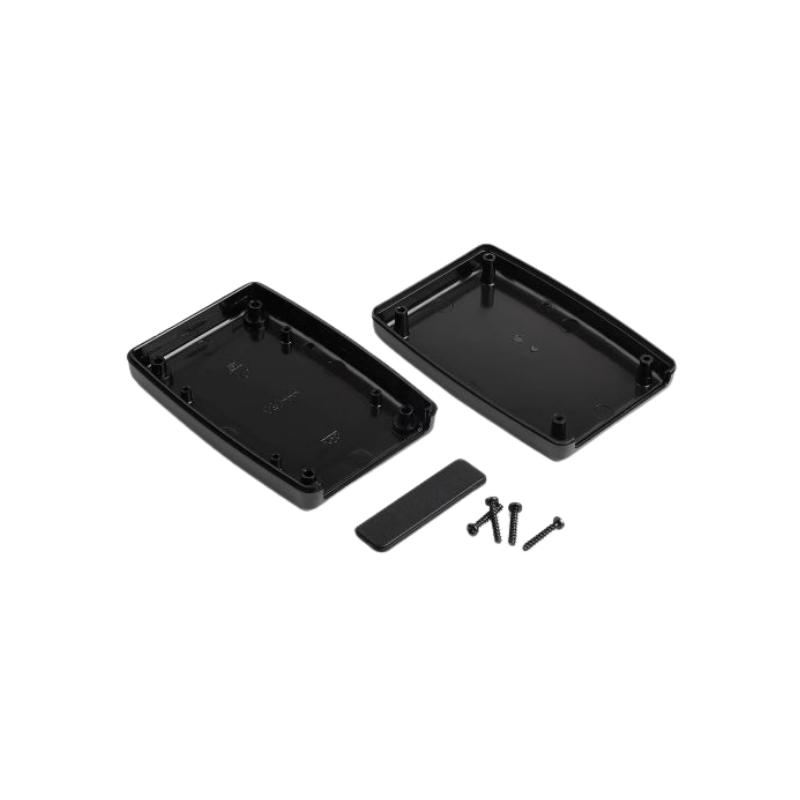

Internally there are PCB mounts in the base..
All of our handheld enclosure can be modified to your exact requirements so we can deliver your custom plastic enclosure ready to populate. The services include CNC machining, punching, painting, anodising, digital printing and screen printing. Our experienced sales team are on hand to offer advice and quotations, please contact us by phone on 01908 325100, email sales@evatron.com or chat with us using our live chat service.
Please contact our sales team for ordering information.
