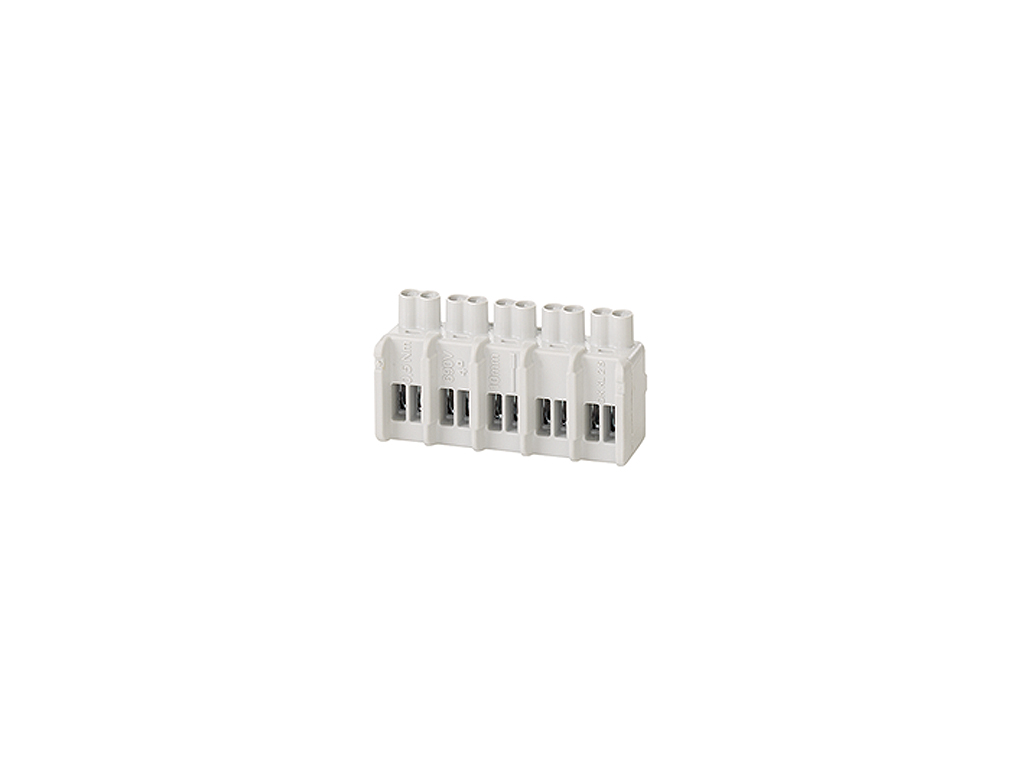

DKKL02

Please contact our sales team for pricing information.

• Rated connecting capacity: 1,5-4 mm², Cu
• for installation in cable junction boxes via terminal support
• terminal with 2 clamping units per pole
• current carrying capacity: 20 A
• 5-pole per pole 8 x 0,75 mm² f, 6 x 1,5 mm² sol / f, 4 x 2,5 mm² sol / f, 2 x 4 mm² sol / f
• can be used on terminal supports DKKH02, DKKH04 and DKKH06


  rated insulation voltage	Ui = 690 V a.c./d.c.
  dismantling length	10 mm
  tightening torque for terminal	0,5 Nm
  Weight	0,025 kg

Terminal mount sold separately.
