ASS20 – Pack of 20

£70.41

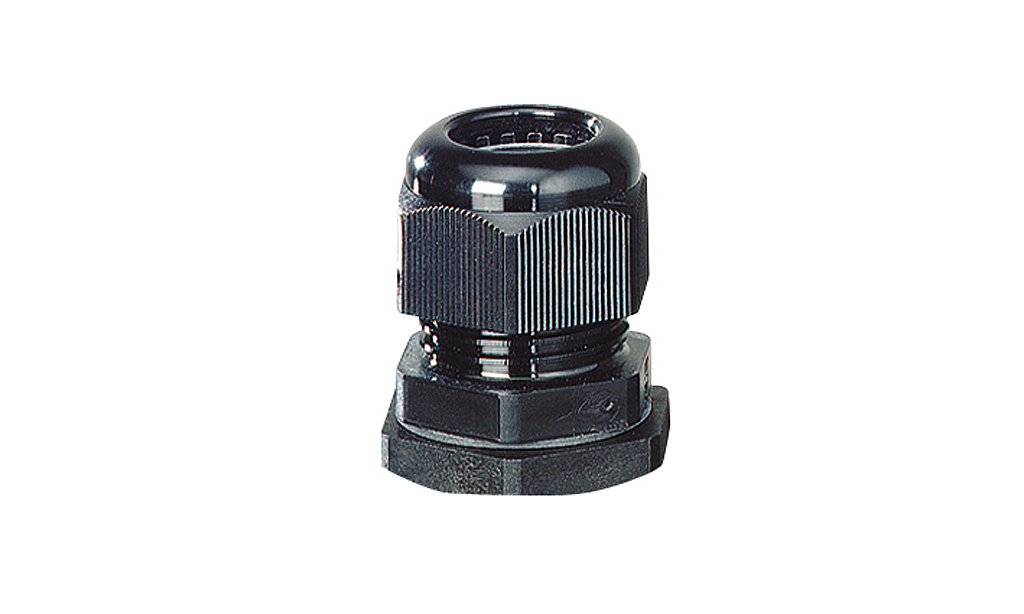

  • Cable glands
  • for knockouts M 20
  • sealing range Ø 6,5-13,5 mm
  • ISO thread M 20 x 1.5
  • bore-hole: Ø 20.3 mm
  • wall thickness up to 3 mm
  • with strain relief and locknut
  • for indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
  • ambient temperature – 25 °C to + 55 °C
  • glow wire test IEC 60695-2-11: 960 °C
  • colour: black, RAL 9005
  • degree of protection: IP 66 / IP 67
  • tightening torque – 4,0Nm
  • width across flats of cable glands – 24mm
  • dimension across corners of cable glands Ø – 26.5mm
  • width across flats of nut – 27mm
  • dimension across corners Ø – 30.2mm
Quantity Discounts
1-50 51-100 101+
£70.41 £66.89 £63.37
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

Additional information

Part Number ASS20
Category
