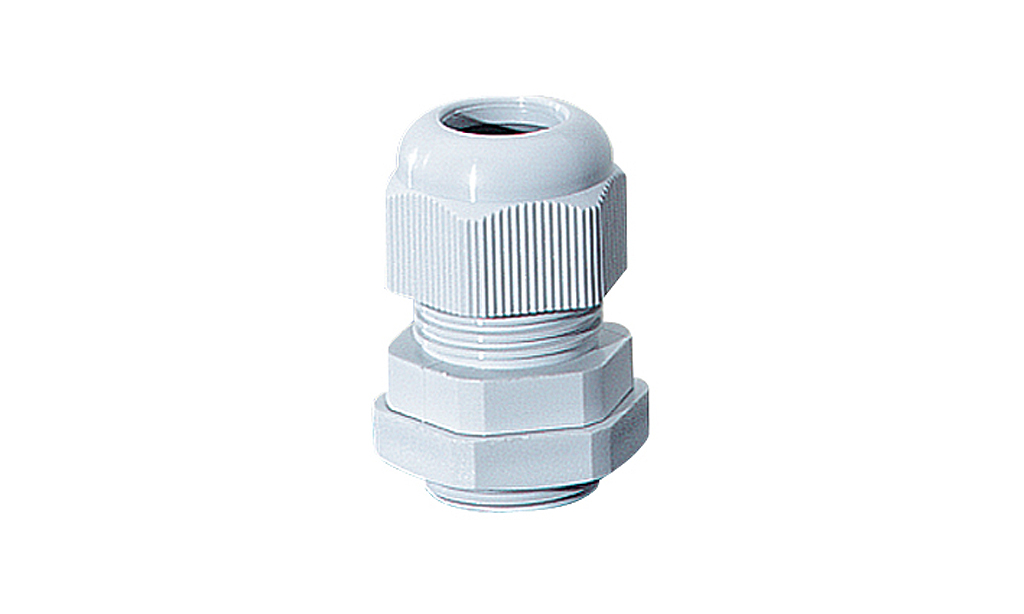

AKM25 – Pack of 20

Please contact our sales team for pricing information.

• Cable glands
• for knockouts M 25
• sealing range Ø 11-17 mm
• ISO thread M 25 x 1.5
• bore-hole: Ø 25.3 mm
• wall thickness up to 3 mm
• with strain relief and locknut
• for indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
• ambient temperature – 25 °C to + 55 °C
• glow wire test IEC 60695-2-11: 960 °C
• colour: grey, RAL 7035
• degree of protection: IP 66 / IP 67 / IP69
• tightening torque – 7,5Nm
• width across flats of cable glands – 29mm
• dimension across corners of cable glands Ø – 32mm
• width across flats of nut – 32mm
• dimension across corners Ø – 36mm
