|Dimensions||127 × 75 × 30 mm|
IP65 Sealing Kit Available
|Part Number||EVA74G 7000|

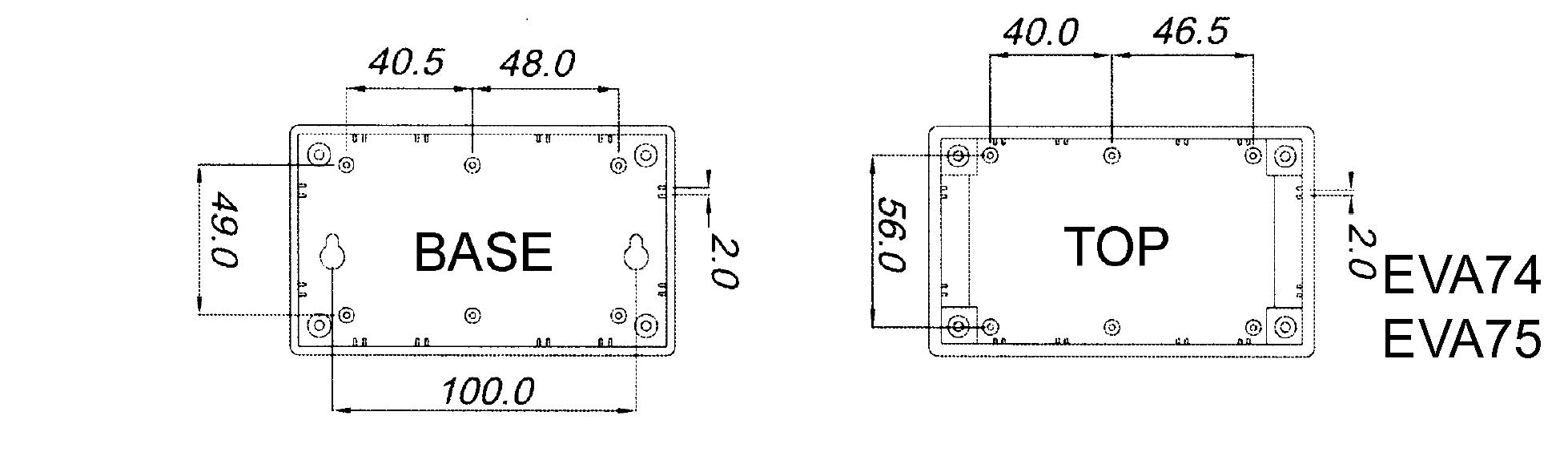

|Technical Drawing||Download Technical Drawing|
|Categories||EVA7000 Series, General Purpose ABS Enclosures, Plastic Enclosures|
EVA74G – Rectangular Enclosure
The EVA7000 series is our range of rectangular enclosures.
These enclosures are ideal for multiple applications due to the design of enclosure and accessories available including wall mounting kits.
Moulded in ABS UL94V-0 material and available in black and grey they feature several PCB mounting points in both the lid and base as well internal ribs to accept PCB boards.
There is a recessed area on both the lid and base suitable for mounting membranes and overlays and we have gaskets available to seal the enclosure to IP65.
All of our plastic enclosures can be modified to your exact requirements including CNC machining and Silk screening. For more information contact us on 01908 325100, email email@example.com or ask us on live chat.
