EVA-042 Black

ยฃ2.25

70 ร— 51 ร— 21 mm

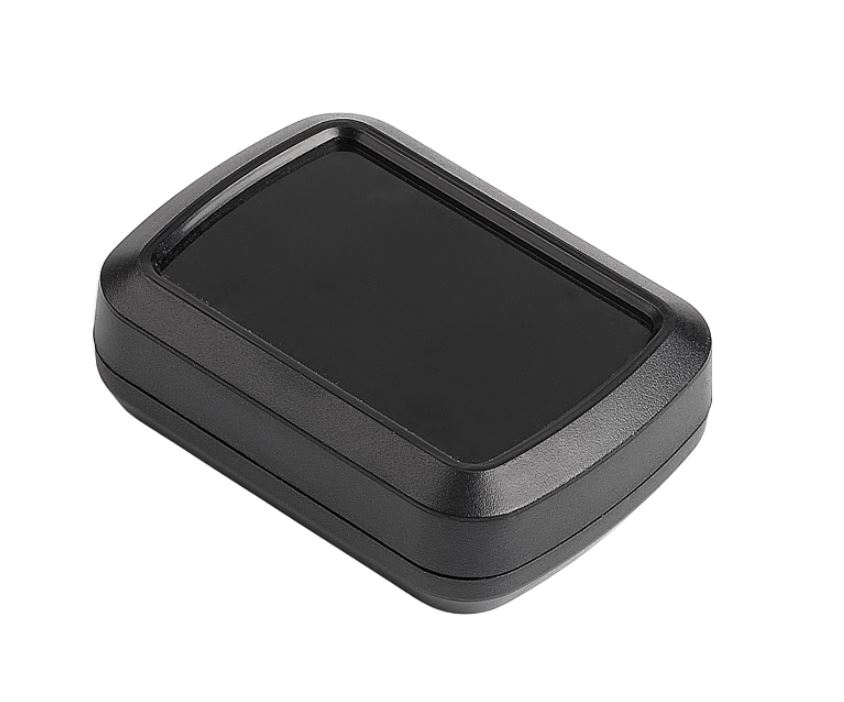

The EVA-042 is a pocket size handheld enclosure moulded in ABS UL94-HB material.

They have a smooth curve to the corners so they fit comfortably in your hand and also giving them a modern appearance. The curves are also mirrored in the recessed area positioned on the top face which allows the mounting of labels and membranes.

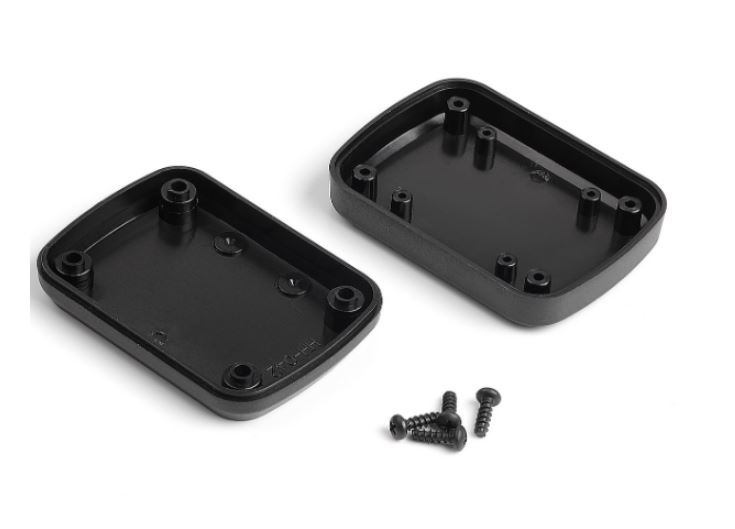

Internally the enclosure has PCB mounts in the base.

Operating Temperature: -30ยฐ / +70ยฐ

Due to it size and appearance this model could also be utilised in many wearable enclosure applications.

All of our handheld enclosure can be modified to your exact requirements so we can deliver your custom plastic enclosure ready to populate. The services include CNC machining, punching, painting, anodising, digital printing and screen printing. Our experienced sales team are on hand to offer advice and quotations, please contact us by phone on 01908 325100, email sales@evatron.com or chat with us using our live chat service.



Please contact our sales team for ordering information.

Request a sample

Customised enclosures

From simple modifications to full designs, we create enclosures to fit your needs.

Start customising

Delivery info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

info Additional information

dimensions Dimensions 70 ร— 51 ร— 21 mm
colourColour

Black

part number Part Number EVA-042B
