|Dimensions||110 × 65 × 28 mm|

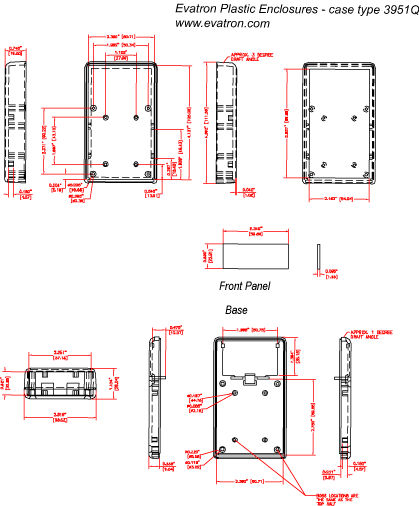

|Technical Drawing||Download Technical Drawing|
|Categories||EVA3951 Series, Plastic Enclosures|

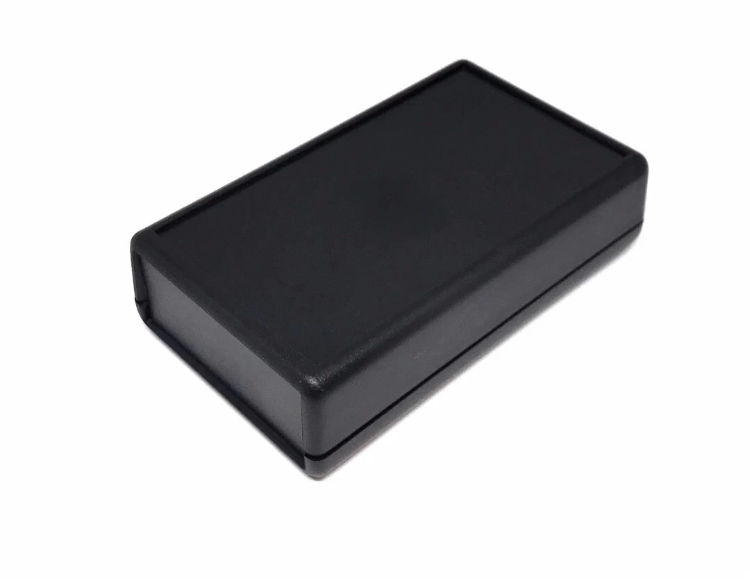

The EVA3951 series of handheld enclosure are moulded in both black and grey ABS material, there are three sizes available in this range.
The enclosures themselves are comfortable to hold but most importantly the 3mm wall thickness will protect your electronics against impact and drops.

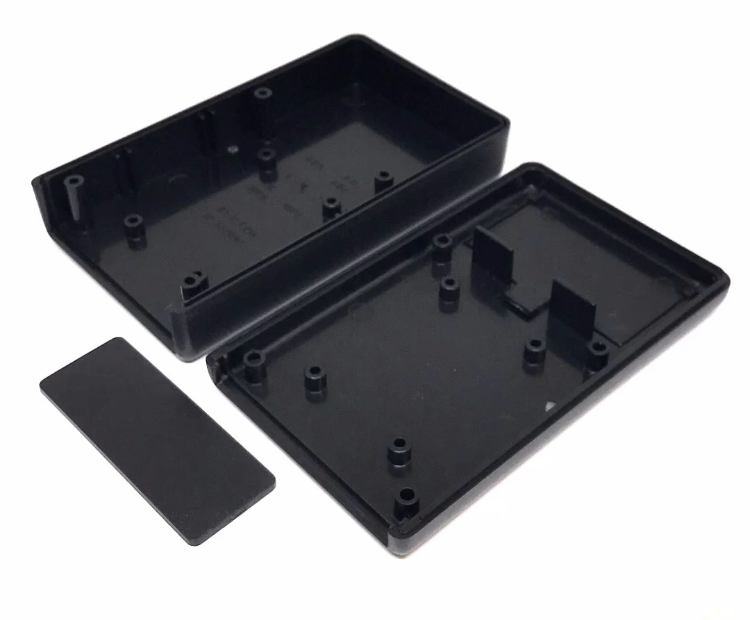

The EVA3951Q features one removable end panel for mounting control equipment and LED. Internally there are PCB mounts in the base and lid as well as two sets of guides on the enclosure walls as a further PCB mounting option.
Externally there is a clip cover to secure the battery compartment suitable for 9v batteries and the plug on battery lead is included. There is also a large recess area in the lid ideal for labels, membranes and screen printing.
This handheld enclosure is secured with four fixings and these are included.
All of our Handheld Enclosures can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact firstname.lastname@example.org for more information.
