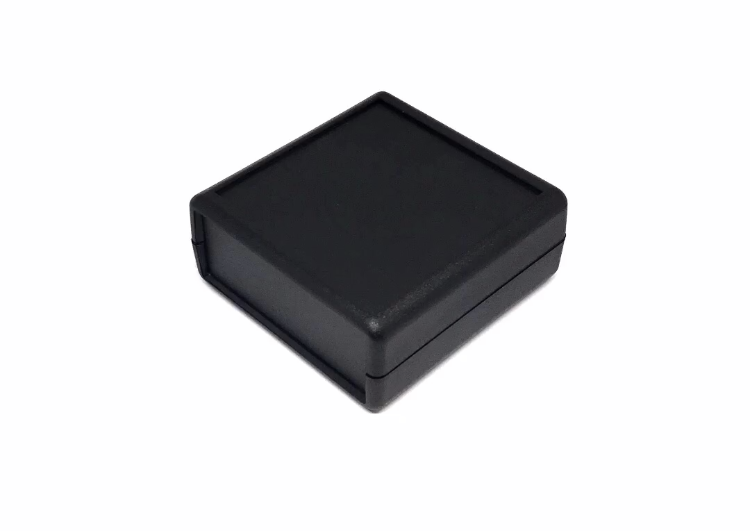

EVA3951KB

ยฃ2.20

65 ร— 65 ร— 28 mm

The EVA3951 series of handheld enclosure are moulded in both black and grey ABS material, there are three sizes available in this range.

The enclosures themselves are comfortable to hold but most importantly the 3mm wall thickness will protect your electronics against impact and drops.

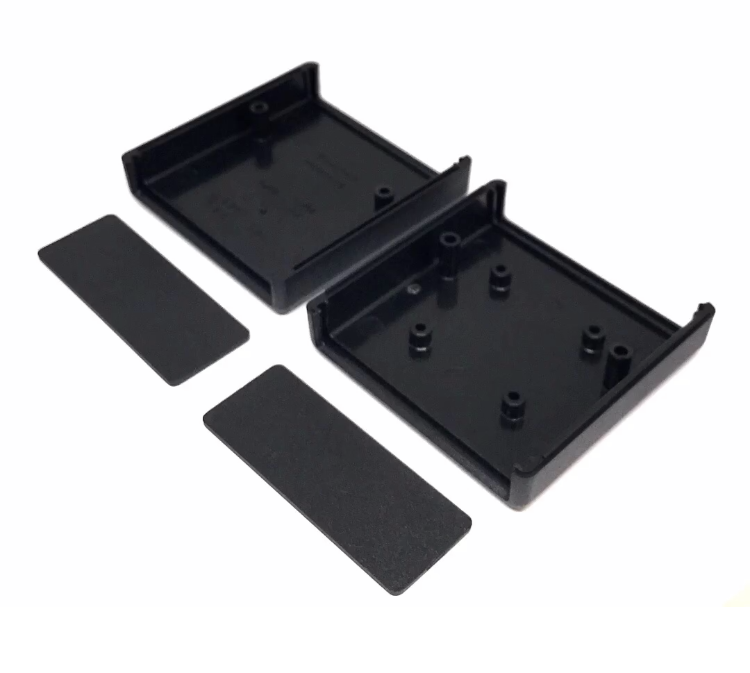

The EVA3951K is the smallest in the range, it features two removable panels in either end of the enclosure for mounting control equipment and LED. Internally there are four pcb mounting points in the base and externally there is a large recessed area in the lid ideal for membranes, labels and screen printing.

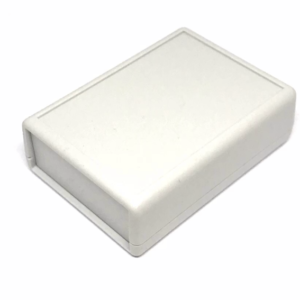

This model is secured with two fixings which are supplied, for larger models with battery compartments please see EVA3951Q and EVA3951P.

Infra red panels available upon on request.

All of our Handheld Enclosures can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact sales@evatron.com for more information.

Quantity discounts
1-49 50-100 101+
ยฃ2.20 ยฃ2.09 ยฃ1.98
Quantity:
Request a sample

Customised enclosures

From simple modifications to full designs, we create enclosures to fit your needs.

Start customising

Delivery info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

info Additional information

dimensions Dimensions 65 ร— 65 ร— 28 mm
colourColour

Black

part number Part Number EVA3951KB

Accessories for this product
