|Dimensions||60 × 40 × 18 mm|
IP65 Sealing Kit Available

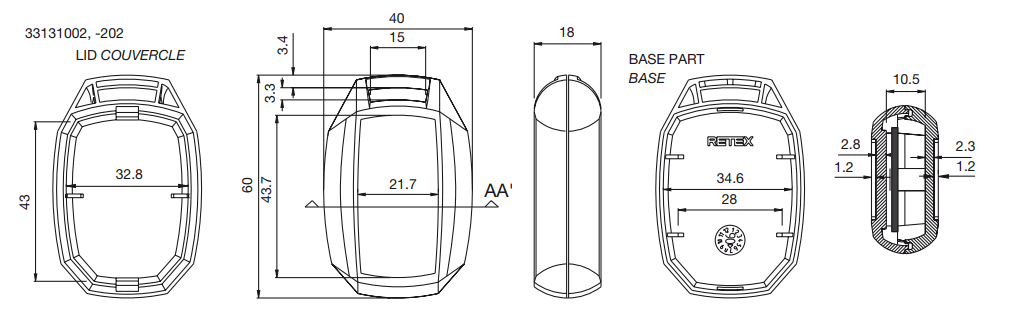

|Technical Drawing||Download Technical Drawing|
|Categories||31 Series, Plastic Enclosures|

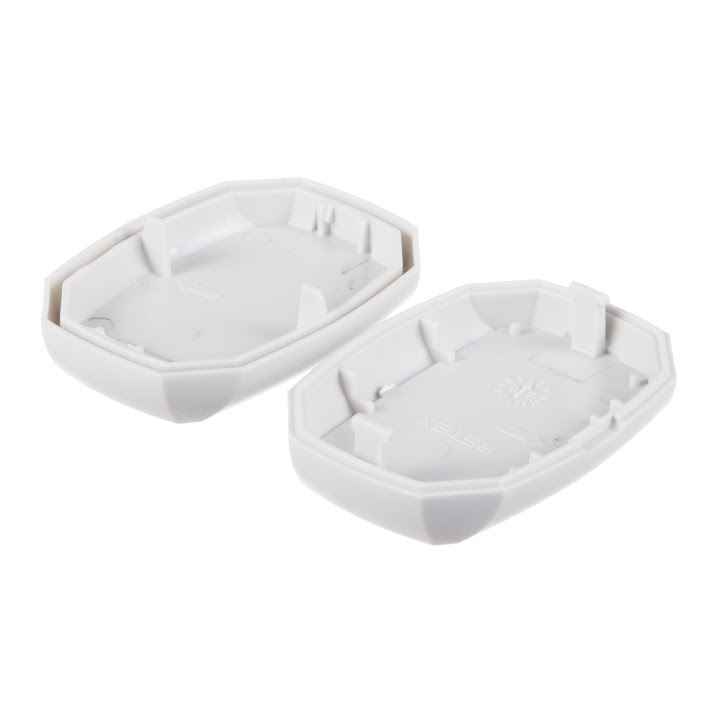

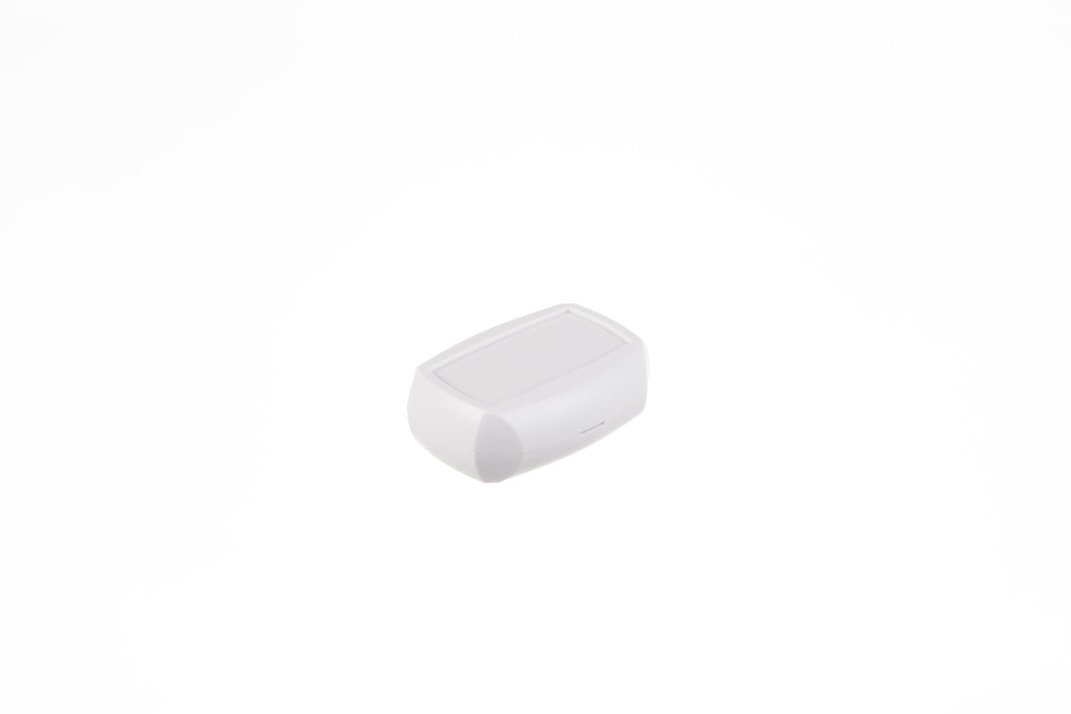

The 31 series are a range of small and robust handheld enclosures. The range is moulded in high impact ABS material temperature resistant up to 85 °C providing protection for your electronics. There are three sizes in the range available in black and grey and the smaller models in the range have a lug for a keyring.
The handheld enclosures can achieve IP65 rating with the optional sealing gasket featured in the accessories below and the snap fit design of the enclosure allows fast, easy and secure assembly.
The modern design is achieved from the bevelled edges which also make the case comfortable to hold. The base and lid of the enclosure both feature recessed area ideal for keypad and membranes.
All of our Handheld Enclosures can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact email@example.com for more information.
This model features
- Grey colour
- Key ring loop
