|Dimensions||200 × 150 × 70 mm|

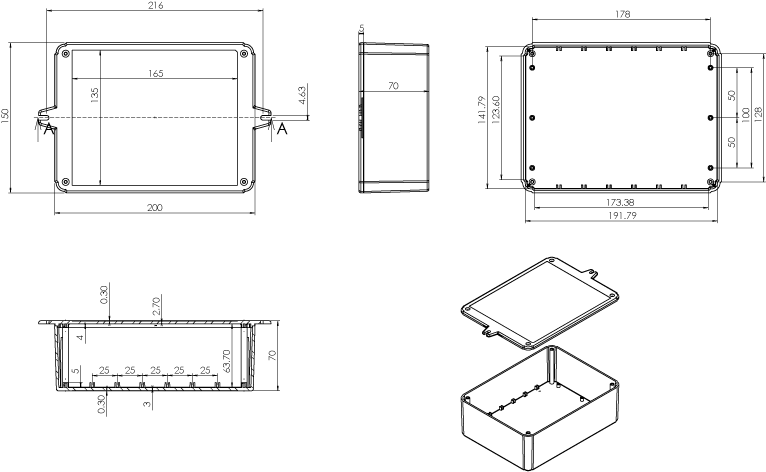

|Technical Drawing||Download Technical Drawing|
|Categories||Flanged & Wall Mounted Enclosures, Plastic Enclosures, RLFL Series - Wall mount enclosures|
RL6655FL – Flanged Enclosure
Multipurpose flanged enclosure moulded in grey ABS HB material.
This flanged enclosure benefits from PCB mounts in both the lid and base as well as slots in the base of the enclosure to secure further PCB.
The lid and base feature a recess area ideal for labels, overlays and silk screening.
All fixings are supplied. Alternative version without flanged lid – Product code RL6655
We can provide custom enclosure machining, labels and silk screening. Contact firstname.lastname@example.org
UL94V-0 material available upon request, please contact us for more information.
