RL6365FL – Flanged Enclosure


125 × 100 × 90 mm

Multipurpose flanged enclosure moulded in grey ABS HB material.

This flanged enclosure benefits from PCB mounts in both the lid and base as well as slots in the base of the enclosure to secure further PCB.

The lid and base feature a recess area ideal for labels, overlays and silk screening.

All fixings are supplied. Alternative version without flanged lid – Product code RL6365

We can provide custom enclosure machining, labels and silk screening. Contact sales@evatron.com

UL94V-0 material available upon request, please contact us for more information.

Quantity discounts
1-49 50-100 101+
£5.10 £4.85 £4.59
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

Dimensions 125 × 100 × 90 mm


Part Number RL6365FL

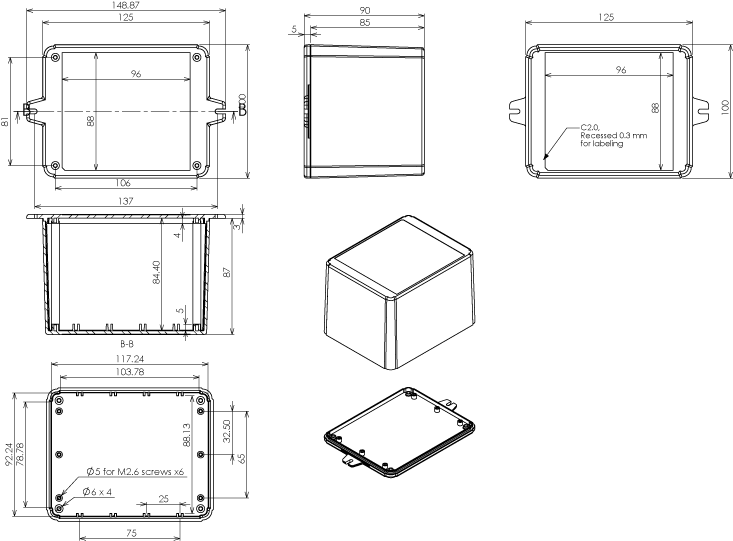

Technical Drawing Download Technical Drawing
