290 × 220 × 70 mm

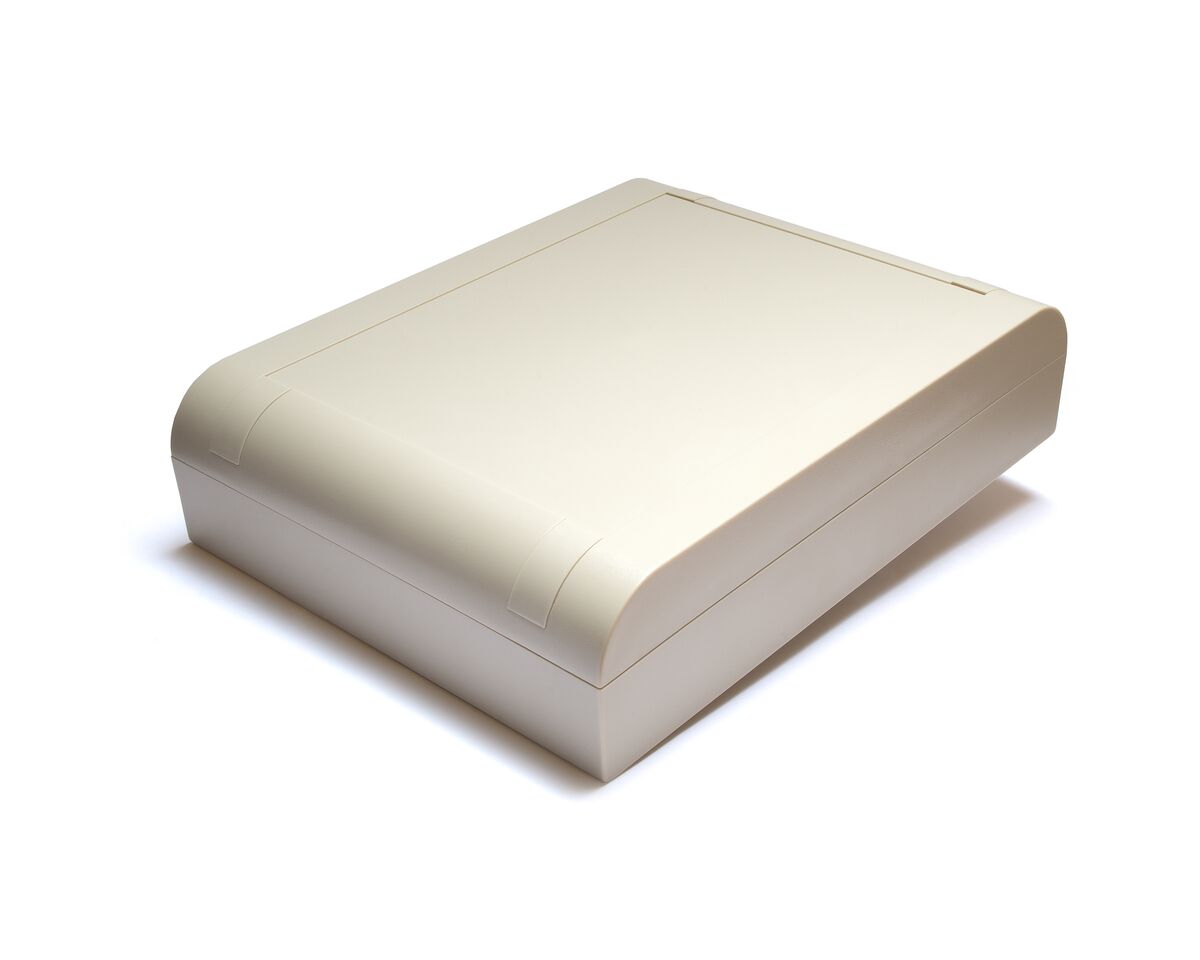

The EVA82 instrument enclosure is ideal for both wall mounted and desktop applications.

The curved edges on the width side of the enclosure provide modern aesthetics whilst maintaining a large amount of usable space inside the enclosure.

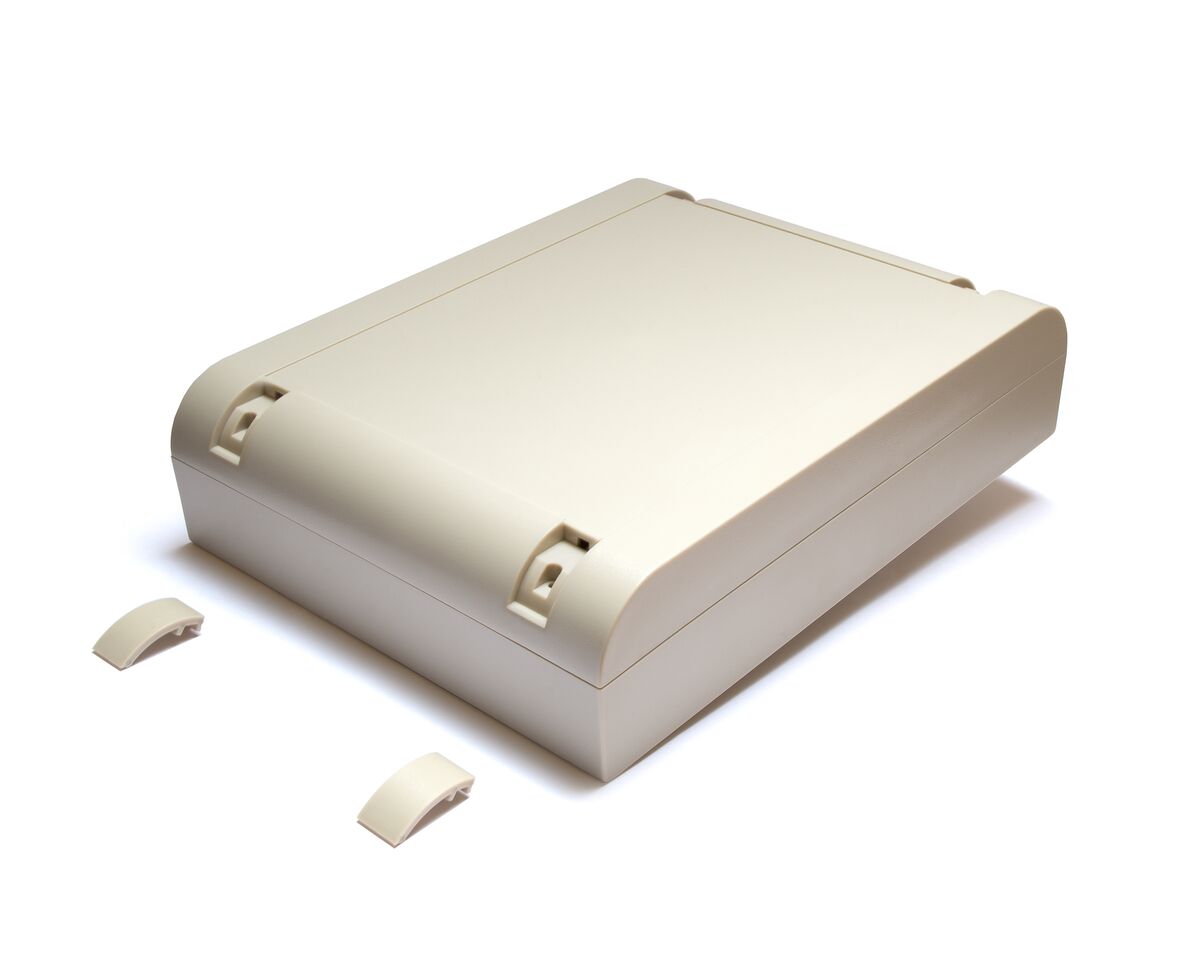

This desktop enclosure features several PCB mounts in both the lid and base allowing you to mount large boards or several smaller PCB’s. The enclosure is supplied with 4 x M3 fixing screws, a sealing gasket, sealing washers and also corner caps to discreetly hide the screws and deter tamper.

The EVA82 is moulded in grey ABS HB plastic and custom colours are available upon request.

There is a recessed area in the lid of the enclosure measuring 230 x 172 x 1.2mm ideal for mounting membranes, keypads, controls and LCD’s.

All of our Desktop Enclosures and Wall Mounted Enclosures can be customised to your exact requirements including RFI shielding, CNC machining and silk screening. Contact sales@evatron.com for more information.

Alternate smaller version available – Product Code PP70

Quantity discounts
1-49 50-100 101+
£16.75 £15.91 £15.08
Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

Dimensions 290 × 220 × 70 mm


Part Number EVA82G
Technical Drawing Download Technical Drawing
