| Dimensions | N/A |
|---|---|
| Width | 108mm, 136mm, 168mm, 228mm |
| Length | 80mm, 120mm, 160mm, 220mm |
| Height | 44.2mm |
| Categories | Aluminium Enclosures, Aluminium Extrusion - RE Series, Metal Enclosures |
U CASE – Custom Dimensions
£8.38 – £27.49
N/A

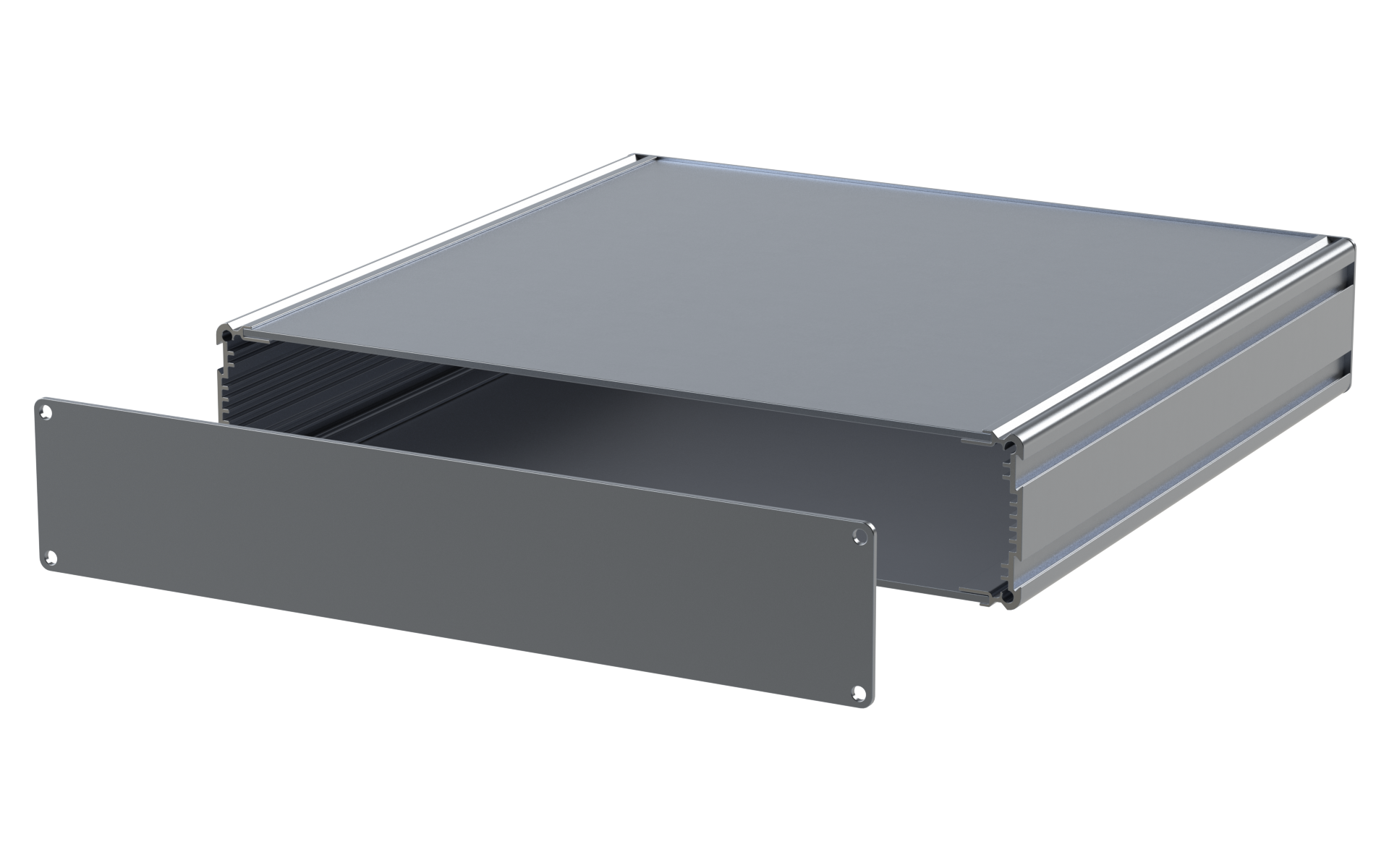

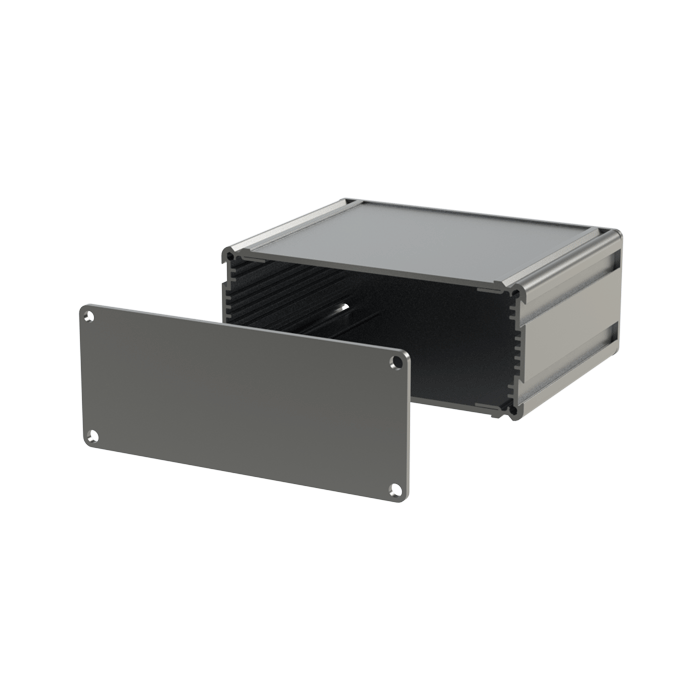

The U-Case range is a 6-piece electronics case kit in silver. Kit includes: 2x 1U/44.2mm tall side extrusions in fixed lengths, end plates, top and bottom plate and self tapping screws.
The maximum height of components on a board mounted in the bottom slot is 30mm. The outside of the box features a pair of dovetail slots which will accept multiple mounting options.
Available in cut lengths of 80mm, 120mm, 160mm or 220mm.

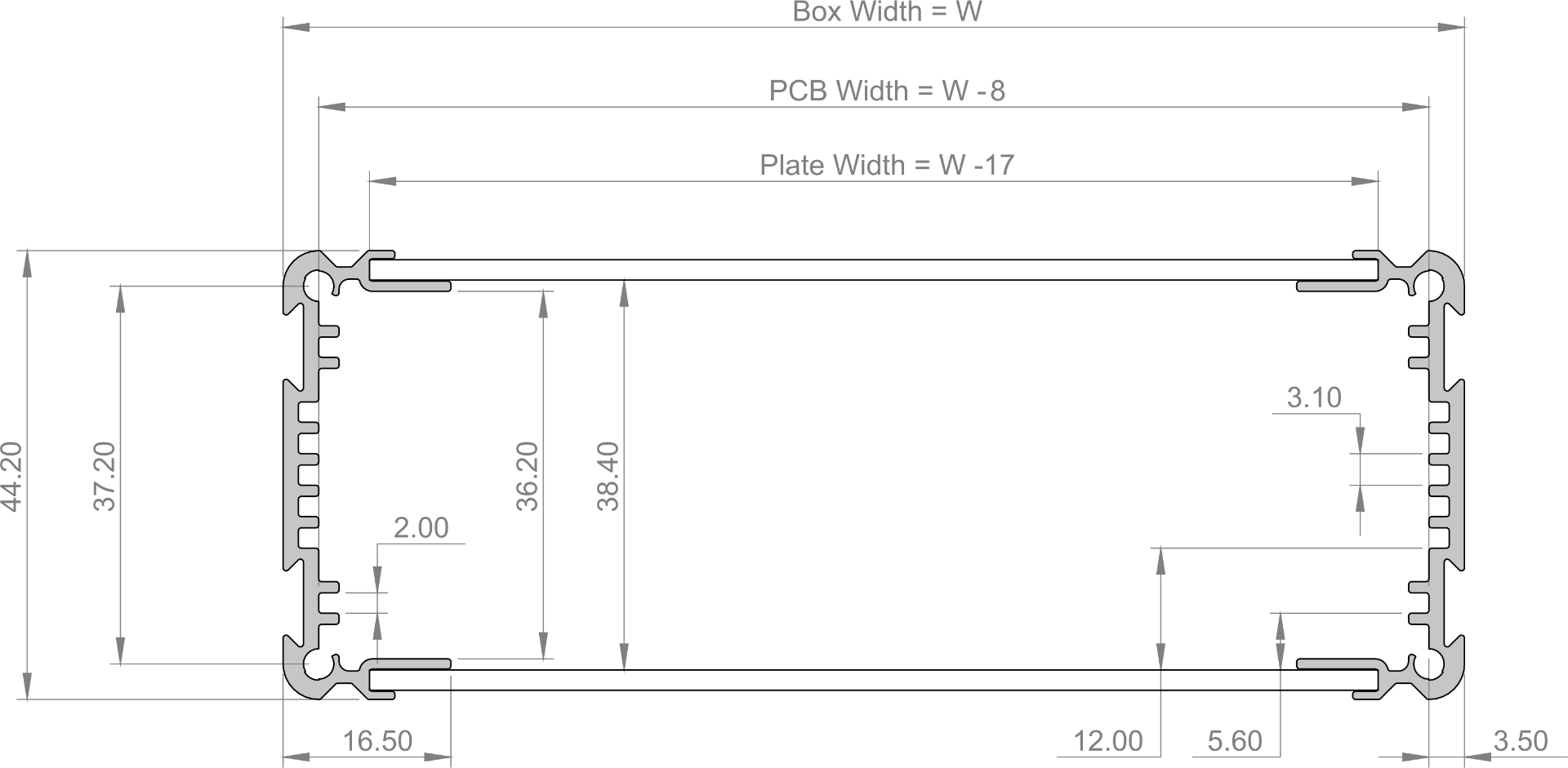

Available in set widths to suit 100mm, 128mm, 160mm and 220mm PCB’s. Overall case width is board width + 8mm.
In silver – the cut edges of the extrusion are not anodised.
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm
End Plates
Material: Aluminium 5005 sheet
Finish: Silver anodised 5μm
Thickness: 1.5mm
Top & Base Plates
Material: Aluminium 5005 sheet
Finish: Silver anodised 5μm
Thickness: 2.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws

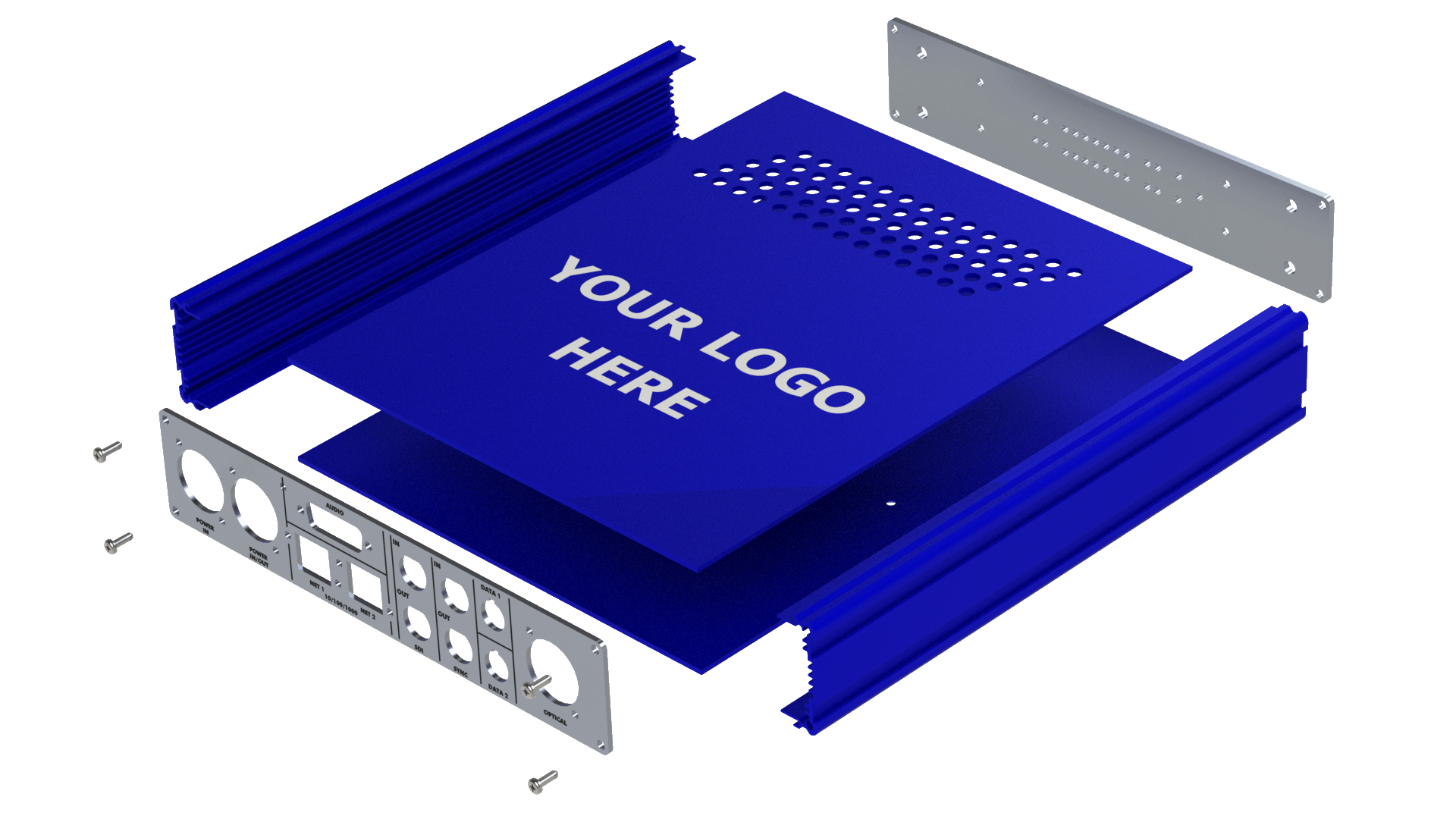

The end plates, top and bottom plate are entirely customisable meaning these can also be supplied in entirely custom sizes.
- Maximum Width 500mm
- Maximum Length 1.5Mtrs
Please contact our team for quotations on custom projects, call 01908 325100 or email sales@evatron.com
