RL6685FL โ€“ Flanged Enclosure

Need assistance? Call 01908 325 100, email sales@evatron.com, or use our live chat

RL6685FL โ€“ Flanged Enclosure

ยฃ14.78

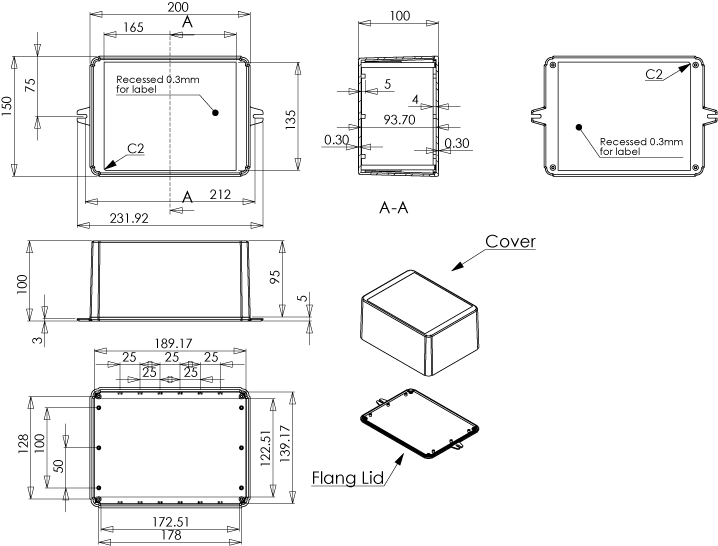

200 ร— 150 ร— 100 mm

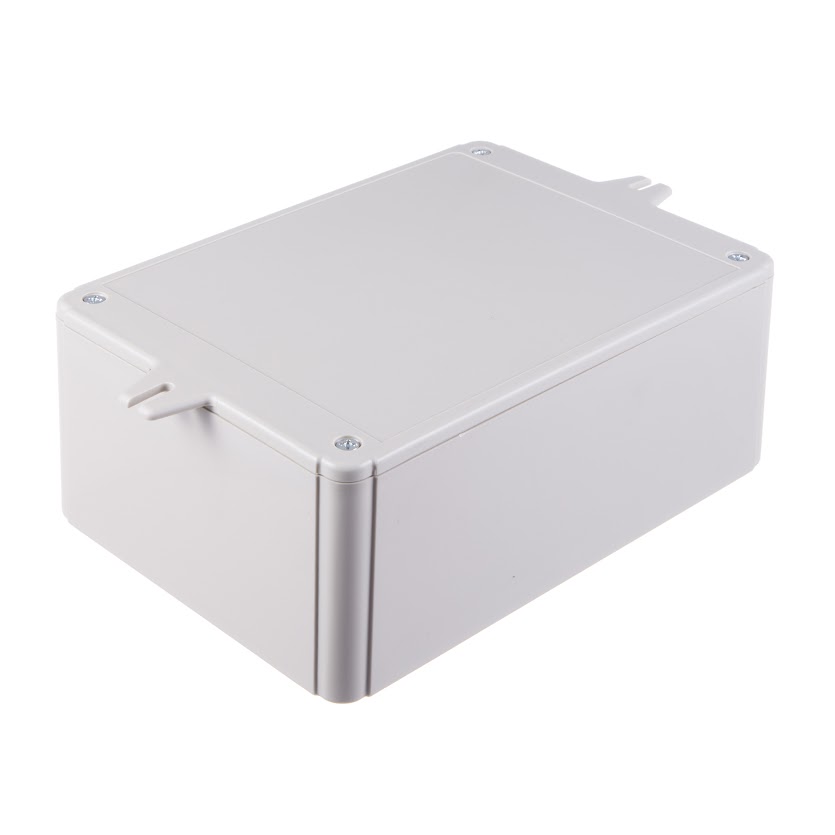

Multipurpose flanged enclosure moulded in grey ABS HB material.

This flanged enclosure benefits from PCB mounts in both the lid and base as well as slots in the base of the enclosure to secure further PCB.

The lid and base feature a recess area ideal for labels, overlays and silk screening.

All fixings are supplied. Alternative version without flanged lid โ€“ Product code RL6685

We can provide custom enclosure machining, labels and silk screening. Contact sales@evatron.com

UL94V-0 material available upon request, please contact us for more information.

Quantity discounts
1-49 50-100 101+
ยฃ14.78 ยฃ14.04 ยฃ13.30
Quantity:
Request a sample

Customised enclosures

From simple modifications to full designs, we create enclosures to fit your needs.

Start customising

Delivery info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

info Additional information

dimensions Dimensions 200 ร— 150 ร— 100 mm
colourColour

Light Grey

part number Part Number RL6685FL
