31110006 – Instrument Enclosure

£211.86

350 × 260 × 120 mm

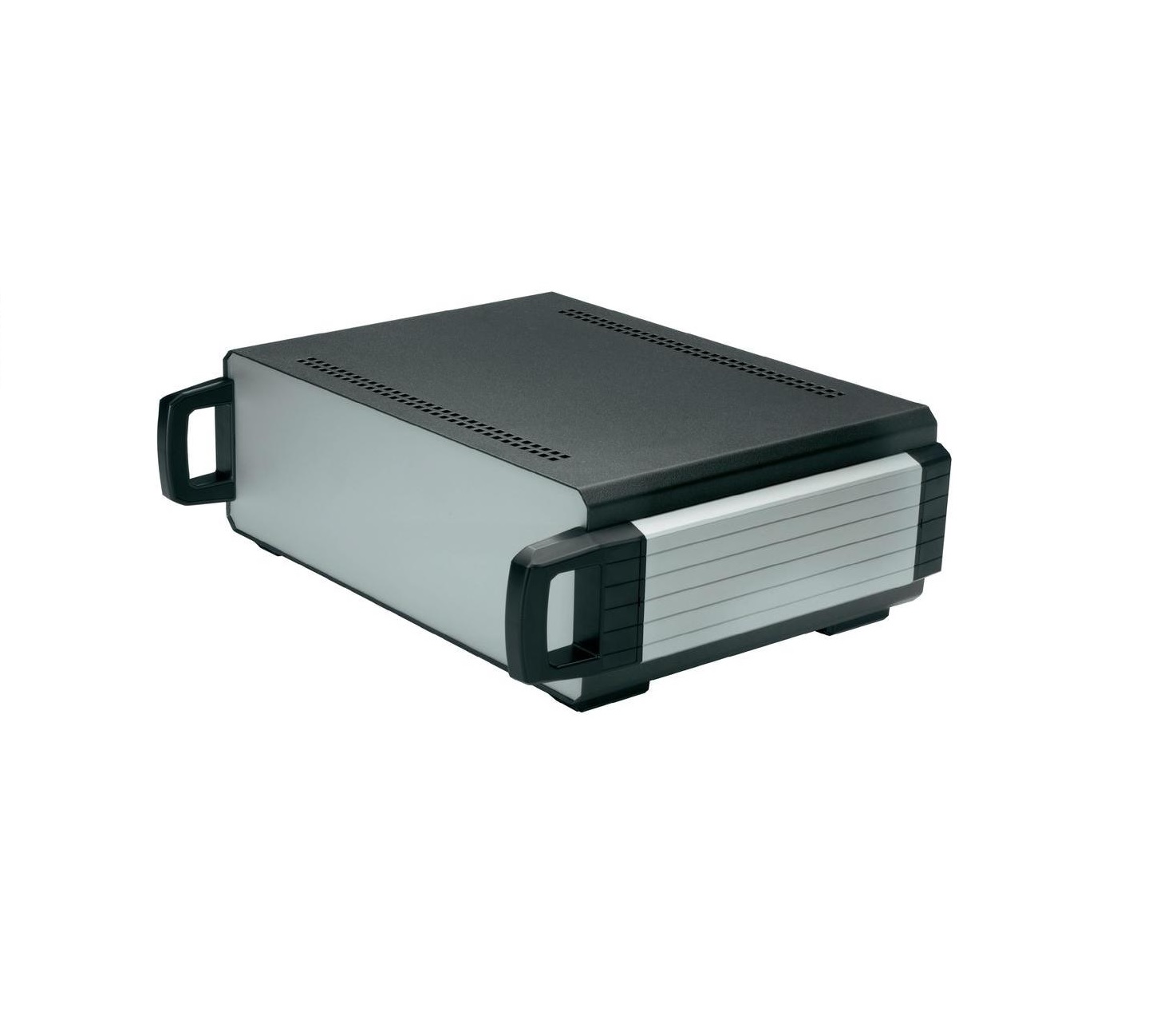

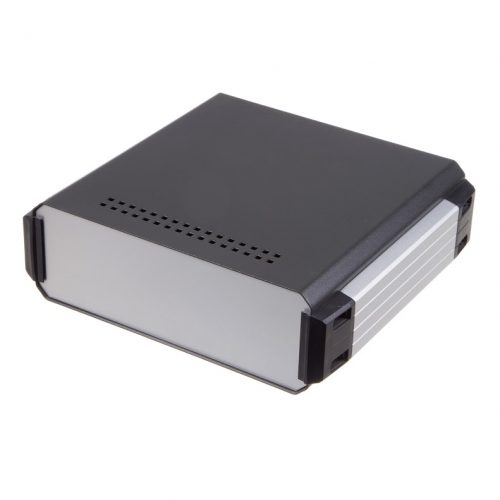

This aluminium instrument enclosure provides high-quality protection for desktop display, test, and measurement controls. The highly functional design lets you push and fit the enclosure onto a desktop. It uses screw less lock pins that push to fit the enclosure easily wherever needed.

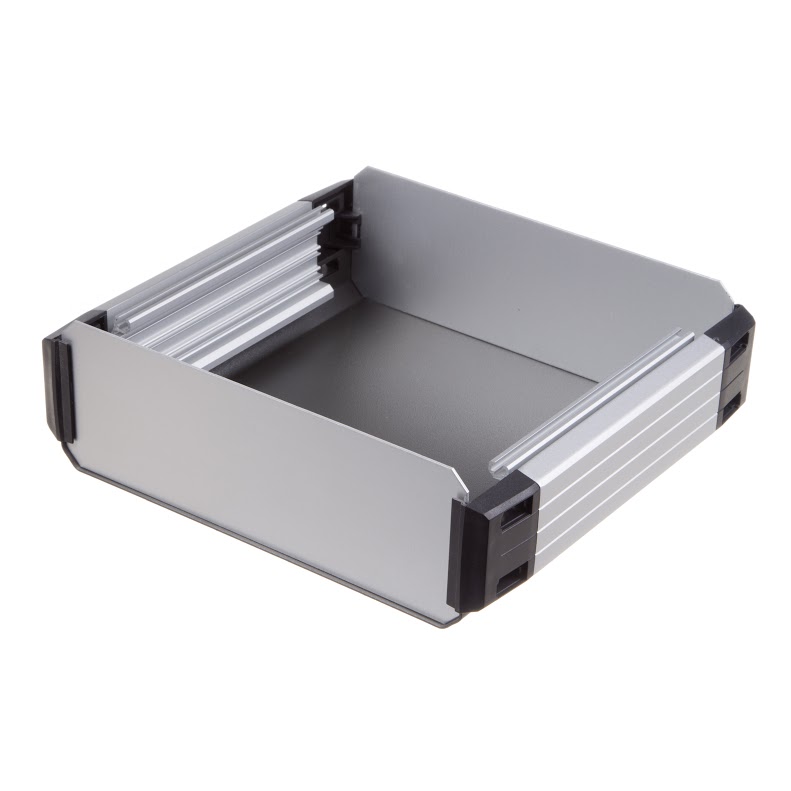

The entire enclosure includes a base, a lid, two rear/front panels, two rear brackets, carry handles as well as two aluminium side rails. All of the necessary screws you will need are also included. The lid and base are made out of a single steel sheet measuring 1 mm. The lid and base have also been painted and epoxy texturized.

Please contact our sales team for ordering information.

Request a Sample

Delivery Info

We will aim to despatch all online orders on a next day service if they are placed before 3pm on a weekday.

Contact Us

If you are unsure what you are looking for or would like more information on this product, please contact us on 01908 325 100 or by emailing sales@evatron.com or by using our live chat service.

The purpose of the enclosure is to provide ultimate protection for your equipment with a modern design. The enclosure makes it easy to optimise your space by comfortably and safely fitting more equipment onto a desktop area. The enclosure has functionality that allows you to mount more items along the side profiles if you choose. The side profiles are made from 6063 aluminium, while the front and rear panels are made from 1070 aluminium and silver anodised. The 6063 aluminium profiles are matt silver anodised.

A great feature about the enclosure is that it is easy to assemble. It has ventilation slots to allow heat to easily escape the enclosure. Both the lid and base can be removed separately if needed. The underside of the enclosure has standard non-slip feet to ensure your equipment remains stationary. There are also two tilting feet and two front handles to help you with precise placement of the enclosure. The tilt feet and brackets are made from high-quality ABS, a thermoplastic polymer.

This particular graphite grey enclosure measures (350 x 120 x 260mm). The enclosure is graphite grey, but you can still add colour options. The lids can be customised to company colours or any colour of your choosing. This enclosure is extremely sturdy and is capable of withstanding intense heat. The plastic parts can take up to 85 degrees Celsius.

The manufacturer’s part number for this enclosure is 31110006.

Dimensions 350 × 260 × 120 mm
Colour

Dark Grey

Part Number 31110006
Technical Drawing Download Technical Drawing
